Festo ADN-16-20-A-P-A – Compact Cylinder | Bore 16mm, Stroke 20mm | Murali Pneumatics Coimbatore

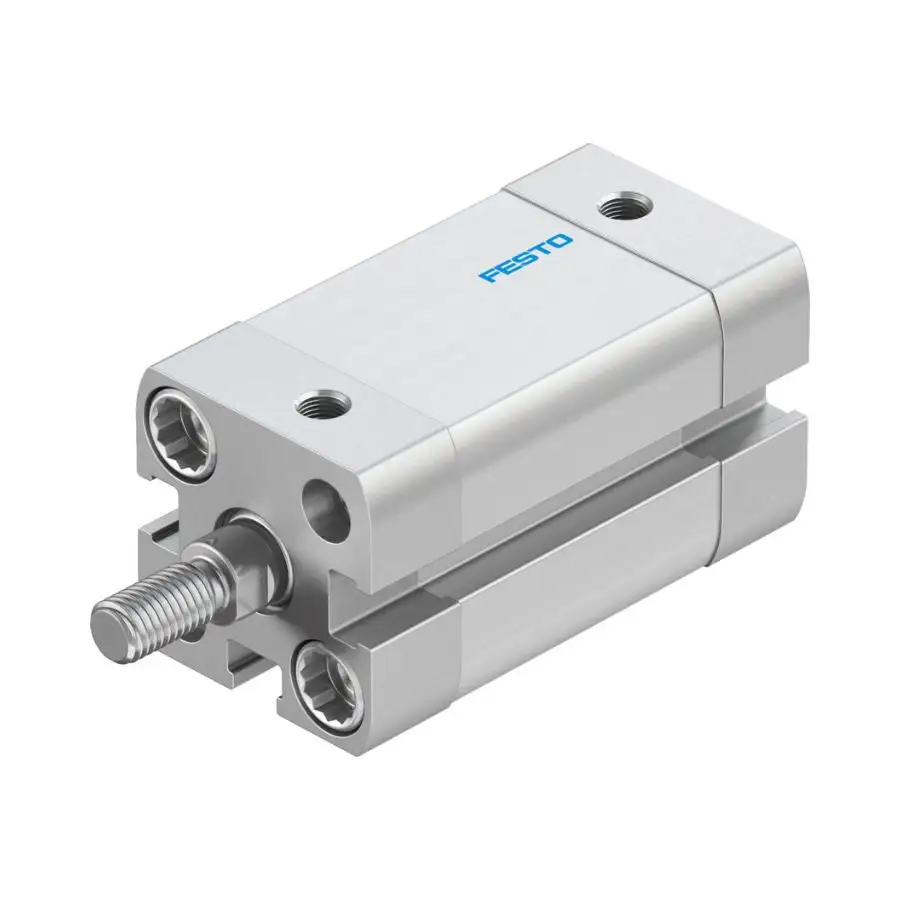

Festo ADN-16-20-A-P-A – ISO 21287 Compact Cylinder Overview

The Festo ADN-16-20-A-P-A is a compact double-acting pneumatic cylinder from the ADN series, conforming to ISO 21287 — the international standard for compact cylinders. With a 16 mm bore diameter and a 20 mm stroke, this unit is engineered for installations where space is limited but reliable force output is non-negotiable. The ADN series is Festo's answer to tight-envelope automation: shorter overall length than standard ISO cylinders, versatile mounting options, and cleanroom suitability up to ISO Class 5 make it a go-to choice across a wide range of industries.

Key Features

• ISO 21287 Compliant — Interchangeable with other manufacturers' compact cylinders of the same bore and stroke; simplifies replacement and standardisation on your production line.
• Double-Acting Operation — Powered stroke in both directions ensures positive control of advance and return, with 121 N advance force and 90 N return force at 6 bar.
• Elastic Cushioning at Both Ends — Absorbs end-of-stroke impact energy (rated at 0.15 J), reducing mechanical shock and extending service life in high-cycle applications.
• Proximity Switch Ready — The cylinder body is profiled for standard Festo proximity switches, enabling position feedback without additional mounting brackets in most cases.
• M5 Pneumatic Connection — Compact port size consistent with the cylinder's small footprint; compatible with Festo QS-M5 and NPQM push-in fittings.
• M6 Male Piston Rod Thread — Standard metric thread for direct connection to clevis pins, rod clevises, or custom tooling without adapters.
• Wide Operating Pressure Range (1–10 bar) — Operates across standard industrial compressed air supply pressures without special regulation in most plant environments.
• Cleanroom Class 5 per ISO 14644-1 — Suitable for environments where airborne particulate levels are controlled; relevant for pharmaceutical, electronics, and food-grade automation.
• LABS/PWIS Conformity (VDMA 24364-B1/B2-L) — Paint-wetting impairment substance free; critical for automotive body shop and surface coating applications.
• Wide Ambient Temperature Range (−20 °C to +80 °C) — Operates reliably in both cold storage environments and high-temperature industrial zones.

Technical Specifications

Parameter	Value
Festo Part Number	536222
Model Number	ADN-16-20-A-P-A
Cylinder Type	Compact Cylinder
Based on Standard	ISO 21287
Mode of Operation	Double-acting
Piston Diameter (Bore)	16 mm
Stroke	20 mm
Piston Rod Thread	M6 Male Thread
Piston Rod End	Male thread
Variants	Piston rod at one end
Pneumatic Connection	M5
Operating Pressure	1 bar … 10 bar (0.1 MPa … 1 MPa / 14.5 psi … 145 psi)
Theoretical Advance Force @ 6 bar	121 N
Theoretical Return Force @ 6 bar	90 N
Cushioning	Elastic cushioning rings/plates at both ends
Impact Energy at End Positions	0.15 J
Position Detection	Via proximity switch
Mounting Position	Any
Type of Mounting	Through-hole, Female thread, With accessories
Operating Medium	Compressed air to ISO 8573-1:2010 [7:4:4]
Lubricated Operation	Possible (if lubricated, must remain lubricated permanently)
Ambient Temperature Range	−20 °C … +80 °C
Moving Mass	26 g
Product Weight	103 g
Cylinder Barrel Material	Smooth-anodised wrought aluminium alloy
Cover Material	Anodised wrought aluminium alloy
Piston Rod Material	High-alloy steel
Seal Material	TPE-U (PUR)
Collar Screws Material	Steel
Corrosion Resistance Class (CRC)	2 – Moderate corrosion stress
Cleanroom Suitability	Class 5 per ISO 14644-1 (measured per ISO 14644-14)
LABS (PWIS) Conformity	VDMA 24364-B1/B2-L
RoHS Compliant	Yes

Common Applications

• Textile Machinery — Yarn tensioner actuation, thread guide positioning, and shuttle control on ring frames and winding machines common in Coimbatore's textile sector.
• Packaging Lines — Label applicator arms, flap fold actuators, and product diverter mechanisms on VFFS and tray-sealing machines.
• CNC Machine Tools — Workpiece clamping, tool changer interlocks, and guard door actuation in machining centres and turning cells.
• Plastic Injection Moulding — Hot runner gate actuation, ejector pin assists, and cavity venting on moulding machines.
• Pharmaceutical & LifeTech Automation — Cleanroom Class 5 rating makes this cylinder suitable for blister packaging lines, tablet press feeders, and syringe assembly machines.
• Food Processing Equipment — Portion control gates, conveyor stop-gates, and lid pressing on filling and sealing equipment where compact envelope is critical.

Why Buy from Murali Pneumatics?

• Authorized Festo Channel Partner since 1991 — Over three decades of Festo product expertise serving industries across Coimbatore and Tamil Nadu.
• 100% Genuine Products with Full Festo Warranty — Every cylinder supplied is sourced directly through Festo's authorised distribution network. No grey-market risk.
• Ready Stock of Popular ADN Models — Common bore and stroke combinations are maintained at our Mill Road, Coimbatore store for same-day or next-day dispatch.
• Expert Technical Support — Call or WhatsApp us at +91 98422 47546 for help with cylinder selection, mounting configuration, or replacement part identification.

Compatible Accessories

• Proximity Switches — Festo SME-8, SMT-8, or SMEO-4 series for position feedback; mount directly into the T-slot profile.
• Push-In Fittings — Festo QS-M5-4 or NPQM-M5-4 push-in fittings for 4 mm OD tubing on the M5 ports.
• Flow Control Valves — Festo GRLA-M5 or GRLZ-M5 inline meter-out flow controls for speed regulation of the piston stroke.
• Mounting Accessories — Festo LBN-16 foot bracket, SNCS-16 swivel clamp, and FNC-16 flange plate for various installation orientations.
• Rod Clevises and Joints — Festo SGS-M6 rod-eye clevis for pivot mounting at the piston rod end.
• Pneumatic Tubing — 4 mm OD polyurethane or nylon tubing (Festo PUN-4 or PLN-4 series) compatible with M5 push-in fittings.

All accessories available from stock. Ask us to bundle your complete assembly.
