Festo ADN-16-20-I-P-A – Compact ISO Cylinder | Bore 16mm, Stroke 20mm | Murali Pneumatics Coimbatore

Festo ADN-16-20-I-P-A – ISO 21287 Compact Cylinder Overview

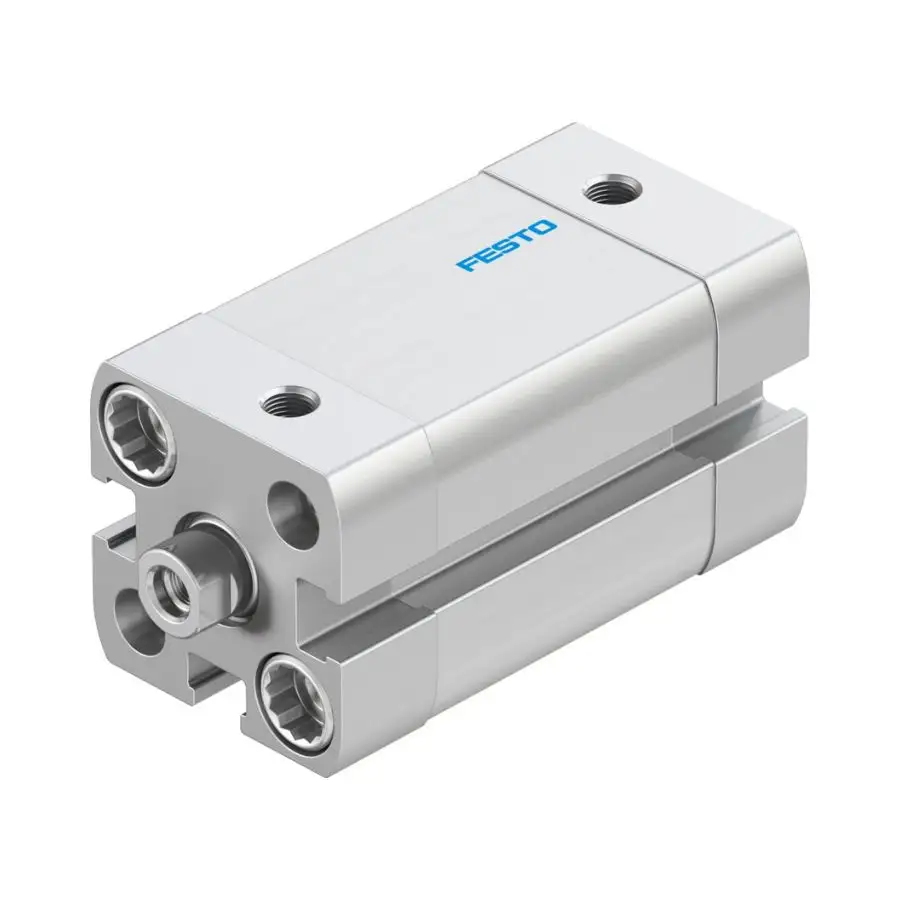

The Festo ADN-16-20-I-P-A is a space-saving, double-acting pneumatic cylinder from the ADN series, designed and manufactured in compliance with ISO 21287 — the international standard for compact pneumatic cylinders. With a 16mm piston diameter and a 20mm stroke, this cylinder is engineered for applications where installation envelope is tight but performance and reliability cannot be compromised. The ADN series is well regarded in automation engineering for its clean profile, versatile mounting options, and compatibility with the full Festo accessory ecosystem.

Key Features

• ISO 21287 Compliant Design — Ensures dimensional interchangeability with other ISO-standard compact cylinders; simplifies retrofitting and sourcing.
• Double-Acting Operation — Powered stroke in both directions provides precise, controlled motion in both advance and return — ideal for gripping, clamping, and positioning tasks.
• Female Thread Piston Rod End (M4) — Allows direct coupling of grippers, tooling, or end effectors without additional adapters, saving assembly time.
• Proximity Switch Ready (Position Detection) — Integrated T-slot groove on the barrel accepts Festo SME/SMT/SIES series proximity switches; no separate bracket required for sensor mounting.
• Elastic Cushioning at Both Ends — Built-in rubber cushioning rings absorb end-position impact energy (rated 0.15 J), reducing noise, vibration, and mechanical wear at stroke limits.
• Cleanroom Class 5 Suitability (ISO 14644-1) — Tested and certified for cleanroom use; suitable for pharmaceutical, food processing, and electronics assembly environments.
• LABS/PWIS Conformity (VDMA 24364-B1/B2-L) — Paint-wetting impairment substance free; safe for use in automotive painting lines and surface-critical environments.
• High-Alloy Steel Piston Rod — Corrosion-resistant and hardened for extended service life even under lateral load or in moderately corrosive environments (CRC 2).
• Anodised Aluminium Barrel and Cover — Smooth anodising on the barrel reduces friction and wear on seals; the cover uses wrought aluminium alloy for structural rigidity.
• Multiple Mounting Options — Supports through-hole mounting, female thread mounting, and accessory-based mounting; any mounting position is permissible.

Technical Specifications

Parameter	Value
Festo Part Number	536229
Model Number	ADN-16-20-I-P-A
Cylinder Type	Compact Pneumatic Cylinder
Based on Standard	ISO 21287
Mode of Operation	Double-acting
Piston Diameter (Bore)	16 mm
Stroke	20 mm
Piston Rod Thread	M4 (Female thread)
Piston Rod End	Female thread
Variants	Piston rod at one end
Cushioning	Elastic cushioning rings/plates at both ends
Impact Energy at End Positions	0.15 J
Position Detection	Via proximity switch
Operating Pressure	1 bar … 10 bar (0.1 MPa … 1 MPa / 14.5 psi … 145 psi)
Theoretical Force – Advance Stroke @ 6 bar	121 N
Theoretical Force – Return Stroke @ 6 bar	90 N
Pneumatic Connection	M5
Operating Medium	Compressed air to ISO 8573-1:2010 [7:4:4]
Lubricated Operation	Possible (once lubricated, must always be lubricated)
Mounting Position	Any
Type of Mounting	With through-hole / With female thread / With accessories
Ambient Temperature	-20 °C … 80 °C
Moving Mass	22 g
Product Weight	100 g
Cylinder Barrel Material	Smooth-anodised wrought aluminium alloy
Cover Material	Anodised wrought aluminium alloy
Piston Rod Material	High-alloy steel
Seal Material	TPE-U (PUR)
Collar Screw Material	Steel
Corrosion Resistance Class (CRC)	2 – Moderate corrosion stress
Cleanroom Suitability	Class 5 per ISO 14644-1 (measured per ISO 14644-14)
LABS (PWIS) Conformity	VDMA 24364-B1/B2-L
RoHS Compliance	Yes – RoHS compliant

Common Applications

• Textile Machinery — Used as compact actuators in thread-guide positioning, yarn tensioning arms, and small-format loom clamping mechanisms in Coimbatore's spinning and weaving industry.
• Packaging Lines — Pouch sealing clamps, flap folding actuators, and small product diverters in FMCG and food packaging automation.
• Pharmaceutical and Cleanroom Equipment — ISO Class 5 certification makes this cylinder suitable for tablet press actuators, blister pack tooling, and sterile environment handling systems.
• CNC Machine Tool Fixtures — Compact bore and stroke make it ideal for work-holding clamps, drawbar actuators, and pallet change mechanisms in machining centres.
• Plastic Injection Moulding — Core pull actuators, gate valve actuation, and small ejector assist mechanisms in mould tooling.
• Electronics and PCB Assembly — Pick-and-place end effectors, component insertion actuators, and test fixture clamping in SMT and PCB assembly lines.

Why Buy from Murali Pneumatics?

• Authorized Festo Channel Partner since 1991 — Over three decades of experience supplying and supporting Festo pneumatic products across Coimbatore and Tamil Nadu.
• 100% Genuine Products with Full Festo Warranty — Every ADN cylinder supplied by us is sourced directly through Festo's authorized distribution chain — no grey-market imports.
• Ready Stock of Popular ADN Models — Common bore and stroke combinations are maintained in stock at our Mill Road, Coimbatore store for immediate dispatch.
• Expert Technical Support — Our team can help you select the right stroke, mounting configuration, and compatible accessories for your specific machine. Call us at +91 98422 47546.

Compatible Accessories

• Proximity Switches — SME-8-K-LED-24, SIES-8M-DS-K-L, or SMT-8M series T-slot sensors for position feedback without external brackets.
• Mounting Brackets and Clevis Kits — LBN-16 (front flange), SNCS-16 (foot bracket), and SGS-M4 (swivel flange) from Festo's ADN accessory range.
• Piston Rod Accessories — FK-M4 rod clevis, SG-M4 ball joint, and ISK-M4 joint pin for flexible end effector coupling.
• Flow Control Valves — GRLA-M5-QS-4-LF or VFOE-LE-T-M5-M5 meter-out flow controls for smooth, adjustable piston speed in both directions.
• Push-In Fittings — QS-M5-4 or NPQM-M5-4 push-in fittings for quick, tool-free M5 port connection with 4mm OD tubing.
• Tubing — PUN-4X0.75 or PLN-4X0.75 in 4mm OD for air supply lines.
• Silencers — U-1/8 or AMTE-M-H-G1/8-DA series for exhaust noise reduction at the directional control valve driving this cylinder.

All accessories available from stock at Murali Pneumatics, Coimbatore. Ask us to bundle your complete cylinder assembly including fittings, tubing, sensors, and mounting hardware.
