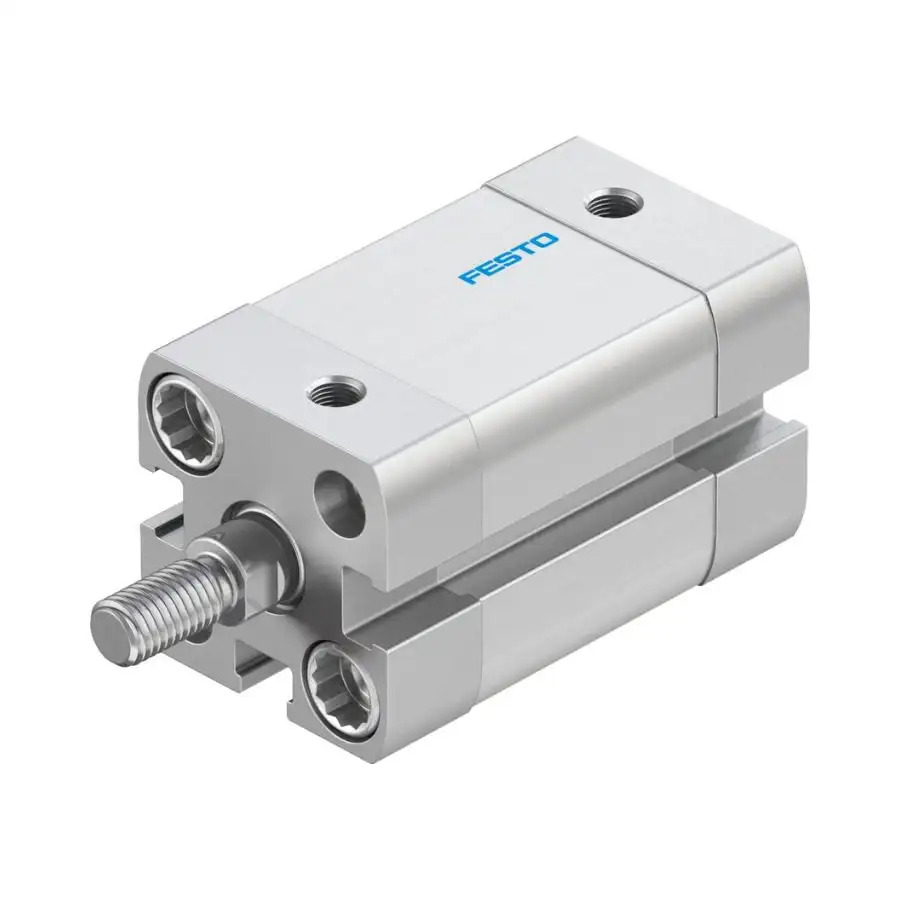

Festo ADN-12-10-A-P-A – Compact Cylinder | Bore 12mm, Stroke 10mm | Murali Pneumatics Coimbatore

About the Festo ADN-12-10-A-P-A Compact Cylinder

The Festo ADN-12-10-A-P-A is a space-saving, double-acting compact cylinder from Festo's well-established ADN series, manufactured in conformance with ISO 21287. With a 12 mm bore and 10 mm stroke, this unit is built for installations where envelope size is critical but reliable actuation cannot be compromised. The anodised aluminium barrel, high-alloy steel piston rod, and TPE-U seals make it a durable choice across a wide range of industrial environments — including those with moderate corrosion exposure or cleanroom requirements up to ISO Class 5. What sets the ADN series apart is the combination of compact form factor, ISO-standardised interface dimensions, and readiness for proximity-switch-based position detection — all in a unit light enough (76 g) to suit even high-cycle, weight-sensitive automation cells. Whether you are retrofitting an existing machine or engineering a new assembly station, the ADN-12-10-A-P-A fits without compromise.

Key Features

• ISO 21287 Compliant — Interchangeable with other ISO-standard compact cylinders; simplifies cross-brand replacement and future-proofs your installation.
• Double-Acting Operation — Positive force on both advance and return strokes; advance force 68 N and return force 51 N at 6 bar — suitable for clamping, pushing, and indexing tasks.
• Elastic End-Position Cushioning — Cushioning rings at both ends absorb impact energy (0.07 J), reducing mechanical noise and extending cylinder service life in high-cycle applications.
• Proximity Switch Compatibility — T-slot or groove-mounted sensors can be fitted for end-position feedback, enabling PLC-controlled sequencing without external limit switches.
• Anodised Aluminium Barrel — Smooth-anodised wrought aluminium resists corrosion (CRC 2), reduces friction, and maintains dimensional stability across the full operating temperature range.
• High-Alloy Steel Piston Rod — Offers superior resistance to bending and surface wear; critical for radial-load scenarios in compact installations.
• M5 Pneumatic Connection — Standard M5 threaded ports match readily available push-in fittings and sub-base mounted valves used across most small-bore pneumatic circuits.
• Flexible Mounting — Supports through-hole mounting, female thread mounting, and accessory-based mounting — adaptable to machine frames of varying geometry.
• Wide Temperature Range — Rated from -20 °C to +80 °C ambient; reliable in both cold-store environments and heated process areas.
• LABS/PWIS Conformity & ISO Class 5 Cleanroom Rated — VDMA24364-B1/B2-L compliant and verified for cleanroom use per ISO 14644-14, making it suitable for pharmaceutical and electronics assembly.

Technical Specifications

Parameter	Value
Festo Part Number	536205
Model Number	ADN-12-10-A-P-A
Cylinder Type	Compact cylinder
Based on Standard	ISO 21287
Mode of Operation	Double-acting
Piston Diameter (Bore)	12 mm
Stroke	10 mm
Piston Rod End	Male thread (M5)
Piston Rod Thread	M5
Variants	Piston rod at one end
Cushioning	Elastic cushioning rings/plates at both ends
Impact Energy at End Positions	0.07 J
Theoretical Force – Advance Stroke (6 bar)	68 N
Theoretical Force – Return Stroke (6 bar)	51 N
Operating Pressure	1 bar … 10 bar (0.1 MPa … 1 MPa / 14.5 psi … 145 psi)
Pneumatic Connection	M5
Operating Medium	Compressed air to ISO 8573-1:2010 [7:4:4]
Lubrication Note	Lubricated operation possible (once lubricated, always required)
Position Detection	Via proximity switch
Mounting Position	Any
Type of Mounting	Through-hole / Female thread / With accessories
Ambient Temperature	-20 °C … +80 °C
Moving Mass	14 g
Product Weight	76 g
Cylinder Barrel Material	Smooth-anodised wrought aluminium alloy
Cover Material	Anodised wrought aluminium alloy
Piston Rod Material	High-alloy steel
Seal Material	TPE-U (PUR)
Collar Screw Material	Steel
Corrosion Resistance Class (CRC)	2 – Moderate corrosion stress
LABS (PWIS) Conformity	VDMA24364-B1/B2-L
Cleanroom Suitability	Class 5 per ISO 14644-1 (measured per ISO 14644-14)
RoHS Compliance	Yes

Common Applications

• Packaging Machinery — Compact stroke requirements for label applicators, pick-and-place fingers, and small-format pouch sealing jaws on VFFS and HFFS lines.
• Textile Machine Automation — Thread-tensioner actuation and shuttle-positioning mechanisms in weaving and spinning frames common across Coimbatore's textile belt.
• CNC and Machine Tool Clamping — Low-profile work-holding and part-ejection sub-assemblies where cylinder envelope must stay within the machine casting envelope.
• Pharmaceutical and Cleanroom Assembly — ISO Class 5 rating makes this cylinder suitable for blister packaging, vial handling, and sterile-area automation requiring low particle emission.
• Electronics and PCB Handling — Fine-pitch component pressing, board-stop actuation, and tray indexing on SMT and THT assembly lines.
• Plastic Injection Moulding Peripheral Automation — Gate-cutting, part-deflection, and conveyor-diverter actuators on moulding machine outfeed systems.

Why Buy from Murali Pneumatics?

• Authorized Festo Channel Partner since 1991 — Over three decades of specialised Festo product knowledge serving Coimbatore and the broader Tamil Nadu industrial market.
• 100% Genuine Products with Full Festo Warranty — Every ADN cylinder we supply is sourced directly through official Festo channels — no grey-market risk.
• Ready Stock of Popular ADN Models — Common bore and stroke combinations are held at our Coimbatore store on Mill Road; call before visiting to confirm availability of your specific variant.
• Expert Technical Support — Our team can advise on sensor selection, fitting compatibility, mounting hardware, and valve pairing for your circuit. Call us at +91 98422 47546.

Compatible Accessories

• Proximity Switches / Reed Sensors — SME-8, SMT-8, or SIES series sensors for T-slot or groove mounting; required separately for position feedback.
• Push-In Fittings (M5 thread) — QS-M5-4 or equivalent Festo push-in fittings for 4 mm OD tubing; match to your tube diameter.
• Polyurethane / Nylon Tubing — PUN-4X0.75 or PLN series tubing in 4 mm OD for M5 port connection.
• Flow Control Valves — GRLA-M5-QS-4-D one-way flow controllers to regulate piston speed on advance or return stroke.
• Mounting Brackets & Clevis Accessories — LB-12, FNC-12, and CRHN-12 accessories for foot, flange, and pivot mounting configurations.
• Solenoid Directional Valves — VUVS-L10 or VUVG-L10 series 5/2 or 5/3 valves in M5 or G1/8 port size for circuit control.
• Silencers (M5) — U-1/8 or U-M5 type exhaust silencers to reduce noise on high-cycle exhaust ports.

All accessories available from stock. Ask us to bundle your complete assembly.
