Festo ADN Series – Compact Cylinder to ISO 21287

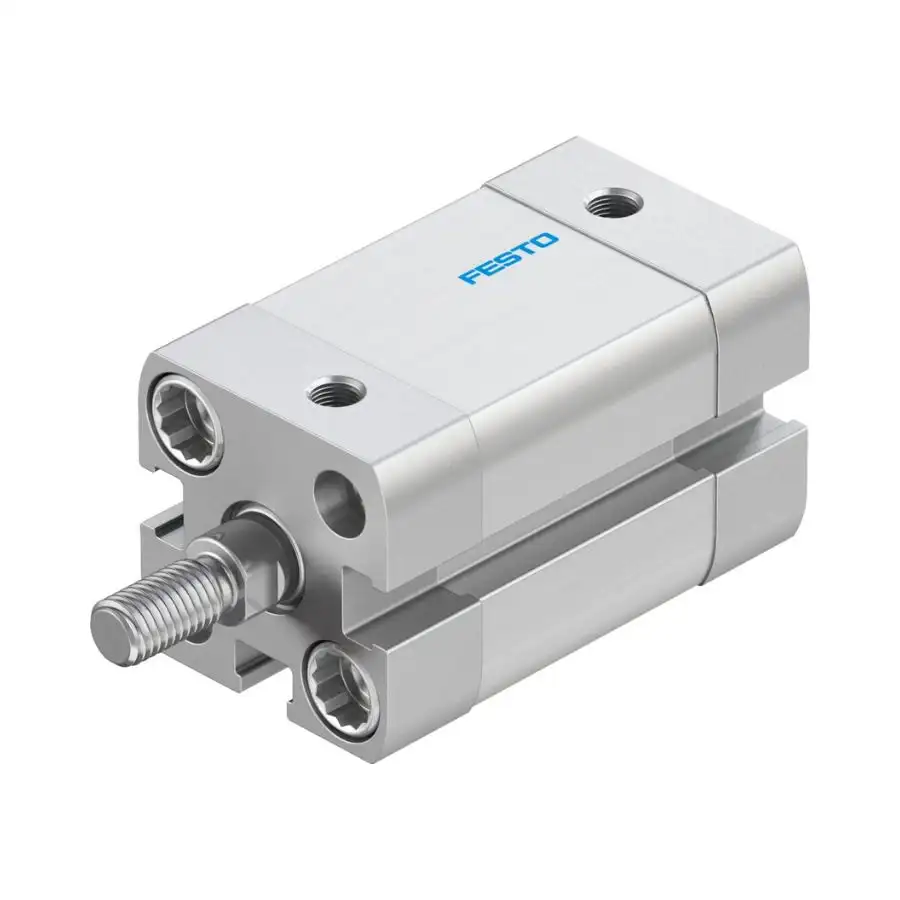

The Festo ADN-16-15-A-P-A is a space-saving, double-acting compact cylinder designed and manufactured to ISO 21287 — the international standard for compact pneumatic cylinders. With a 16 mm bore and a 15 mm stroke, this unit fits into automation layouts where a full-size cylinder simply will not go, yet it delivers reliable, repeatable linear force at up to 10 bar working pressure. The ADN series is widely used across South Indian industries precisely because it combines ISO-standard interchangeability, cleanroom suitability, and a robust aluminium-and-steel construction in a package that is easy to mount, connect, and maintain.
Key Features
- ISO 21287 Compliant — Drop-in replacement compatibility across brands; reduces downtime when sourcing spares on urgent breakdowns.
- Double-Acting Operation — Air pressure drives both advance and return strokes, giving controlled, predictable motion in both directions without spring dependency.
- 121 N Advance / 90 N Return Force at 6 bar — Adequate gripping, clamping, or pushing force for small-part handling tasks without oversizing the cylinder.
- Elastic Cushioning at Both Ends — Integrated rubber cushioning rings absorb end-of-stroke impact (0.15 J), reducing mechanical shock on the cylinder and connected tooling without requiring external shock absorbers.
- M5 Pneumatic Connection — Standard M5 threaded ports keep the installation footprint small and are compatible with the full range of Festo QS push-in and NPQH fittings.
- Proximity Switch-Ready — Designed for position detection via proximity switch (sensor slot/groove present); enables position feedback without adding external brackets in most configurations.
- Cleanroom Class 5 (ISO 14644-1) — Validated for use in clean environments; suitable for pharmaceutical packaging, medical device assembly, and precision electronics lines.
- LABS/PWIS Conformity (VDMA 24364-B1/B2-L) — Paint-wetting impairment substance free; safe for use on automotive painting lines and wherever coating adhesion is critical.
- Anodised Aluminium Barrel and Cover — Smooth anodised bore provides a consistent sealing surface and good corrosion resistance (CRC 2 — moderate corrosion stress).
- Multiple Mounting Options — Through-hole mounting, female thread mounting, and accessory-based mounting give flexibility in machine integration.
Technical Specifications
| Parameter |
Value |
| Festo Part Number |
536221 |
| Model Number |
ADN-16-15-A-P-A |
| Cylinder Type |
Compact Cylinder |
| Based on Standard |
ISO 21287 |
| Mode of Operation |
Double-acting |
| Piston Diameter (Bore) |
16 mm |
| Stroke |
15 mm |
| Piston Rod Thread |
M6 |
| Piston Rod End |
Male thread |
| Variants |
Piston rod at one end |
| Pneumatic Connection |
M5 |
| Operating Pressure |
1 bar … 10 bar (0.1 MPa … 1 MPa / 14.5 psi … 145 psi) |
| Theoretical Force – Advance Stroke at 6 bar |
121 N |
| Theoretical Force – Return Stroke at 6 bar |
90 N |
| Cushioning |
Elastic cushioning rings/plates at both ends |
| Impact Energy at End Positions |
0.15 J |
| Position Detection |
Via proximity switch |
| Mounting Position |
Any |
| Type of Mounting |
Through-hole, female thread, with accessories |
| Operating Medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Lubrication Note |
Lubricated operation possible; if used lubricated, must always be lubricated |
| Ambient Temperature Range |
-20 °C … +80 °C |
| Moving Mass |
24 g |
| Product Weight |
96 g |
| Cylinder Barrel Material |
Smooth-anodised wrought aluminium alloy |
| Cover Material |
Anodised wrought aluminium alloy |
| Piston Rod Material |
High-alloy steel |
| Seal Material |
TPE-U (PUR) |
| Collar Screw Material |
Steel |
| Corrosion Resistance Class (CRC) |
2 – Moderate corrosion stress |
| Cleanroom Suitability |
Class 5 per ISO 14644-1 (measured to ISO 14644-14) |
| LABS (PWIS) Conformity |
VDMA 24364-B1/B2-L |
| RoHS Compliance |
Yes – RoHS compliant |
Common Applications
- Textile Machinery, Coimbatore — Compact clamping and thread-tensioning mechanisms on ring frames, winding machines, and warping creels where space is severely constrained.
- Pharmaceutical and Medical Packaging — ISO Class 5 cleanroom rating makes this cylinder directly applicable on blister packing, capsule filling, and vial-handling lines without special dispensation.
- CNC Machine Tools and Machining Centres — Small workpiece clamping fixtures, tool-change actuators, and chuck jaw positioning where a short, precise stroke is needed.
- Plastic Injection Moulding — Ejector assist, sprue gate actuation, and part pick-and-place on mould platens; low moving mass (24 g) reduces cycle time impact.
- Food and Beverage Processing — LABS/PWIS conformity and cleanroom suitability suit filling line diverters, conveyor stops, and lid-placement heads in hygienic environments.
- Electronics and PCB Assembly — Precision component insertion, board clamping, and connector pressing where fine force control and repeatability matter.
Why Buy from Murali Pneumatics?
- Authorized Festo Channel Partner since 1991 — Over three decades of uninterrupted Festo dealership in Coimbatore; we know this product range inside out.
- 100% Genuine Products with Full Festo Warranty — Every ADN cylinder supplied by us carries the Festo manufacturer's warranty; no grey-market or counterfeit risk.
- Ready Stock of Popular ADN Models — Common bore and stroke combinations are held in stock at our Mill Road store for same-day or next-day availability.
- Expert Technical Support — Need to confirm the right mounting kit, sensor type, or flow control setting? Call or WhatsApp us on +91 98422 47546 and speak directly with a Festo-trained engineer.
Compatible Accessories
- Proximity Switches (SME / SMT-8 series) — For position feedback; specify T-slot or band-type sensors compatible with the ADN profile groove.
- Mounting Brackets and Clevis Kits (HAPG / LB series) — Foot brackets, flange mounts, and clevis connectors for the ADN-16 footprint; confirm accessory codes when ordering.
- Flow Control Valves (GRLA-M5 / VFOE series) — Meter-out flow restrictors on M5 ports to control piston speed precisely on both strokes.
- Push-In Fittings (QS-M5-4 / NPQH-M5-4) — M5 push-in fittings for 4 mm OD tubing; ideal for clean, tool-free pneumatic connections.
- Polyurethane Tubing (PUN-4 series) — 4 mm OD tubing for the M5 port; available in black, blue, and food-grade natural finish.
- Solenoid Valves (VUVS / MHE2 series) — 3/2 or 5/2 directional control valves to drive the double-acting cylinder; match flow rate to cylinder bore and speed requirement.
All accessories available from stock at our Coimbatore store. Ask us to bundle your complete cylinder assembly — cylinder, fittings, sensor, and valve — in a single quotation.
