Festo MSB4-1/4:I1:I3 – Service Unit | 360 l/min G1/4 | Murali Pneumatics Coimbatore

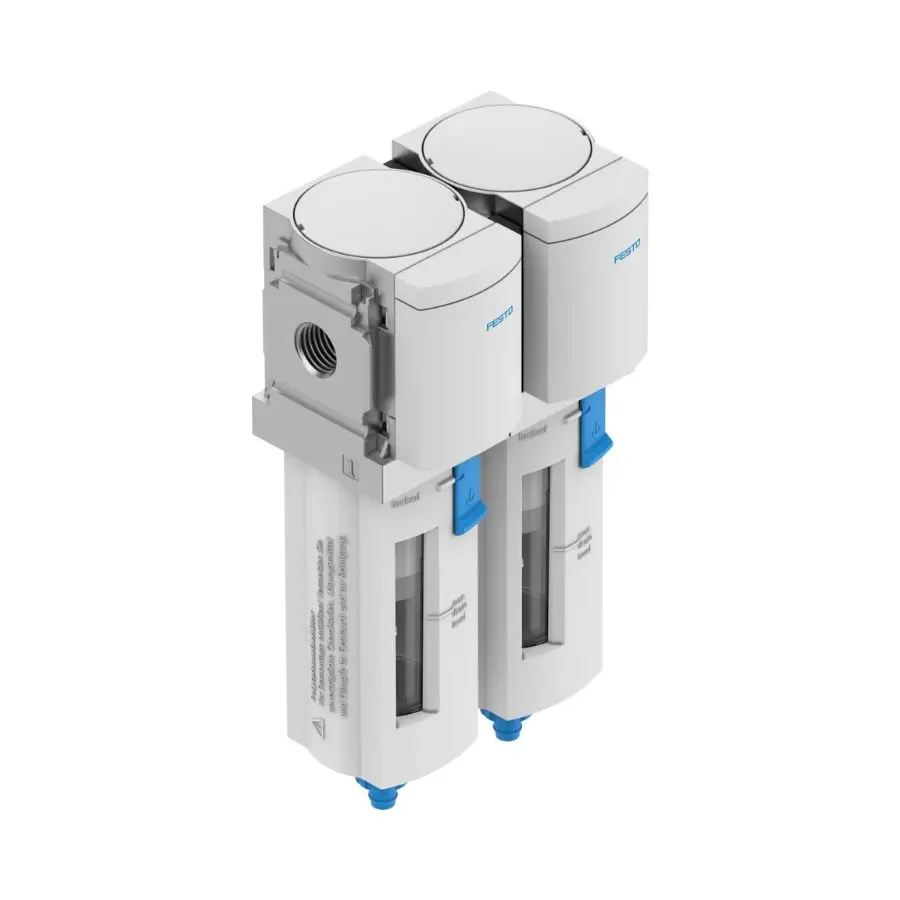

The Festo MSB4-1/4:I1:I3 is a compact service unit combination designed for air preparation in pneumatic systems, ensuring clean and regulated compressed air supply. With a flow rate of 360 l/min and G1/4 connections, it is ideal for precision-driven industrial applications.
Built with a fibre filter and robust aluminium housing, this unit is suitable for demanding environments including food processing, automation, and cleanroom operations.
Festo Part Number: 8233006
Note: Mounting accessories must be ordered separately.
Available with Murali Pneumatics, your authorized Festo dealer in Coimbatore.
Product Description
Reliable Air Preparation with Festo MS Series
The Festo MSB4-1/4:I1:I3 service unit is part of the modular MS series, designed for efficient compressed air preparation in industrial automation systems. Known for its compact design and durability, the MS series ensures consistent air quality, which directly impacts the performance and lifespan of downstream pneumatic components. This unit integrates fibre filtration with controlled condensate management, making it suitable for applications where air purity and reliability are critical.Key Features
- Fibre filter element — ensures effective removal of fine particles for cleaner air supply
- 360 l/min flow capacity — supports medium-demand pneumatic systems
- G1/4 port size — standard connectivity for compact automation setups
- Manual condensate drain — allows controlled removal of collected moisture
- Die-cast aluminium housing — provides durability in industrial environments
- Borosilicate filter material — ensures high filtration efficiency and longevity
- Plastic bowl guard — protects the bowl while maintaining visibility
- Wide pressure range up to 14 bar — suitable for varied operating conditions
- Cleanroom and ATEX compatibility — usable in sensitive and hazardous environments
- Compact MS4 size design — space-saving installation in panels and machines
Technical Specifications
| Parameter | Value |
|---|---|
| Festo Part Number | 8233006 |
| Product Type | Service Unit Combination |
| Series | MS |
| Size | 4 |
| Mounting Position | Vertical +/-5° |
| Condensate Drain | Manually rotating |
| Design | Fibre filter |
| Max Condensate Volume | 19 ml |
| Operating Pressure | 0 to 14 bar (0 to 1.4 MPa) |
| Flow Rate | 360 l/min |
| Operating Medium | Compressed air ISO 8573-1:2010 [6:-:4], inert gases |
| Air Purity Class at Output | ISO 8573-1:2010 [5:-:3] |
| Corrosion Resistance | CRC 2 - Moderate |
| LABS Conformity | VDMA24364-B1/B2-L |
| Media Temperature | -10 °C to 60 °C |
| Ambient Temperature | -10 °C to 60 °C |
| Storage Temperature | -10 °C to 60 °C |
| Pneumatic Connection Port 1 | G1/4 |
| Pneumatic Connection Port 2 | G1/4 |
| Housing Material | Die-cast aluminium |
| Bowl Material | PC |
| Filter Material | Borosilicate fibre |
| Seal Material | NBR |
| Weight | 400 g |
| Mounting Type | With accessories |
Common Applications
- Food and packaging machinery requiring clean compressed air
- Textile machinery and spinning automation systems
- CNC machine air preparation and tool actuation systems
- Pharmaceutical and cleanroom automation setups
- Process automation in chemical and industrial plants
- Mining and metal processing equipment
Why Buy from Murali Pneumatics?
- Authorized Festo Channel Partner since 1991 in Coimbatore
- 100% genuine Festo products with full warranty
- Ready stock availability for fast dispatch
- Expert support for selection and installation — call +91 98422 47546
Compatible Accessories
- Mounting brackets and wall fixing kits
- Pneumatic fittings (QS series)
- PU and PA tubing
- Pressure regulators and gauges
- Silencers and exhaust accessories
- Additional MS series modules for modular assembly
