Festo MSB4-1/4:C3:J1:F1-WP – Air Prep Unit | 1300 l/min | Murali Pneumatics Coimbatore

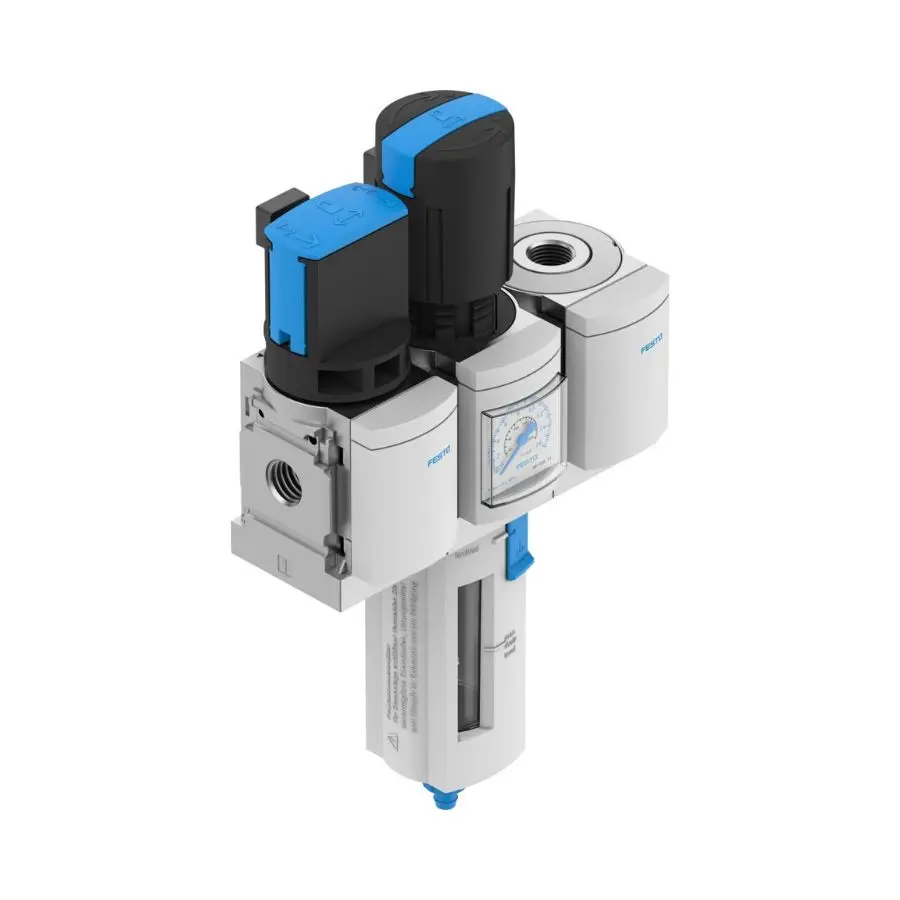

The Festo MSB4-1/4:C3:J1:F1-WP is a compact air preparation combination unit designed to filter, regulate, and control compressed air supply in pneumatic systems.
With a maximum flow rate of 1300 l/min and integrated filter regulator, on/off valve, and pressure gauge, it ensures stable and clean air delivery for consistent machine performance.
Ideal for industrial automation setups, CNC machines, textile machinery, and packaging lines requiring reliable air conditioning.
Festo Part Number: 8233005
Available with Murali Pneumatics, your authorized Festo dealer in Coimbatore.
Product Description
Product Overview
The Festo MSB4-1/4:C3:J1:F1-WP belongs to the MS series of modular air preparation units, designed for compact installation and reliable compressed air conditioning. This combination unit integrates filtration, pressure regulation, and on/off control in a single assembly, making it suitable for space-constrained industrial panels. Festo MS series units are known for their modular design, consistent output pressure control, and long service life under continuous operation. This model is particularly useful in applications where stable air quality and pressure are critical for system performance.Key Features
- Integrated air preparation unit — Combines filter, regulator, and shut-off valve in one compact module
- 1300 l/min flow rate — Supports medium-duty pneumatic applications without pressure drop issues
- 40 µm filtration — Removes contaminants to protect downstream components
- Rotary knob with detent — Easy and precise pressure adjustment with locking capability
- Manual condensate drain — Simple maintenance without additional accessories
- Secondary venting — Safe pressure release during regulation
- Return flow function — Ensures stable pressure control even under fluctuating loads
- Integrated pressure gauge — Real-time monitoring of output pressure
- Modular MS series design — Easy integration into existing Festo assemblies
Technical Specifications
| Parameter | Value |
|---|---|
| Festo Part Number | 8233005 |
| Product Type | Service Unit Combination |
| Series | MS |
| Size | 4 |
| Design | Branching module, On/off valve, Filter regulator with pressure gauge |
| Flow Rate | 1300 l/min |
| Filtration Grade | 40 µm |
| Operating Pressure | 0.8 – 14 bar (0.08 – 1.4 MPa) |
| Pressure Regulation Range | 0.5 – 12 bar (0.05 – 1.2 MPa) |
| Mounting Position | Vertical ±5° |
| Condensate Drain | Manual |
| Controller Function | Primary pressure compensation, secondary venting, return flow |
| Operating Medium | Compressed air (ISO 8573-1:2010 [7:4:4]), inert gases |
| Media Temperature | -10°C to 60°C |
| Ambient Temperature | -10°C to 60°C |
| Air Purity Class | ISO 8573-1:2010 [7:4:4] |
| Port Size | G1/4 (Ports 1, 2, 3, 4) |
| Material Housing | Die-cast aluminium |
| Material Bowl | Polycarbonate (PC) |
| Filter Material | PE |
| Corrosion Resistance | CRC 2 – Moderate |
| LABS Compliance | VDMA24364-B1/B2-L |
| Weight | 710 g |
| Mounting Type | Via mounting bracket |
Common Applications
- Textile machinery – loom air supply and spinning automation
- CNC machine tools – stable air pressure for tool actuation
- Packaging machines – consistent pneumatic control systems
- Plastic injection moulding units – air preparation for valve systems
- Automotive assembly lines – actuator air conditioning
- General industrial automation panels in Coimbatore manufacturing units
Why Buy from Murali Pneumatics?
- Authorized Festo Channel Partner since 1991
- 100% genuine Festo products with warranty support
- Ready stock available in Coimbatore for fast supply
- Technical guidance from experienced pneumatic specialists
Compatible Accessories
- Mounting brackets for MS series
- Pneumatic fittings (G1/4)
- PU/PA tubing
- Silencers for exhaust ports
- Additional MS series modules
- Thread sealant and installation accessories
