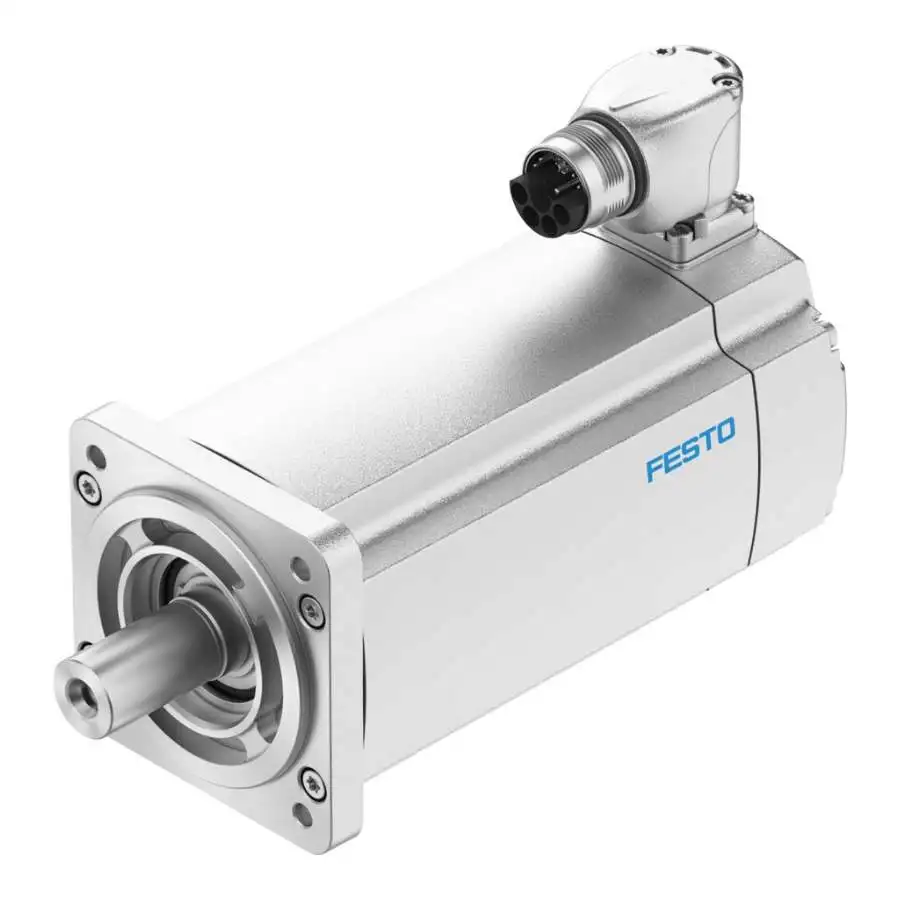

Festo EMMT-AS-80-L-LS-RMY Servo Motor for Precision Electric Automation

The Festo EMMT-AS-80-L-LS-RMY is a servo motor from Festo’s electric automation portfolio, designed for accurate motion control in machines where speed, torque, positioning feedback, and reliability are important. This model is suitable for applications in food and packaging, mining and metals, and advanced automation systems where a compact, high-performance motor is required. With 910 W nominal motor power, 2.9 Nm nominal torque, 9.9 Nm peak torque, and an absolute multi-turn safety encoder, this servo motor supports precise positioning and dynamic machine movement. For Coimbatore-based industries using packaging lines, CNC automation, textile machinery, and special-purpose machines, this motor is a practical choice when paired with the correct Festo servo drive and accessories.

Key Features

• 910 W nominal motor power — suitable for medium-duty electric automation and dynamic motion control tasks.
• 2.9 Nm nominal torque — provides stable continuous torque output for controlled machine movement.
• 9.9 Nm peak torque — supports short-duration high-load acceleration and demanding motion cycles.
• 3000 rpm nominal rotary speed — useful for fast positioning, indexing, and machine-axis applications.
• 6400 rpm maximum rotational speed — allows higher-speed operation where the machine design permits.
• Absolute multi-turn safety encoder — enables accurate rotor position feedback and reliable position transmission.
• EnDat® 2.2 rotor position interface — supports high-resolution feedback communication with compatible servo drives.
• Hybrid M23x1 plug connection — simplifies motor connection by combining power and feedback connection architecture.
• IP67 motor housing protection with connection components — suitable for industrial environments when installed with correct matching connectors.
• RoHS-compliant materials — supports compliance requirements for modern industrial machinery.

Technical Specifications

Parameter	Value
Festo Part Number	8160650
Product Type	Servo motor
Series	EMMT-AS
Model	EMMT-AS-80-L-LS-RMY
Product Category	Motors and servo drives
Application Areas	Food and packaging, mining and metals, electric automation portfolio, electric automation highlights
Ambient Temperature	-40 °C ... 40 °C
Note on Ambient Temperature	Up to 80 °C with derating of -1.5% per degree Celsius
Maximum Installation Height	4000 m
Note on Maximum Installation Height	As of 1,000 m: only with derating of -1.0% per 100 m
Storage Temperature	-40 °C ... 70 °C
Relative Air Humidity	0 - 90%
Conforms to Standard	IEC 60034
Temperature Class as per EN 60034-1	F
Maximum Winding Temperature	155 °C
Rating Class as per EN 60034-1	S1
Temperature Monitoring	Digital motor temperature transmission via EnDat® 2.2
Motor Type to EN 60034-7	IM V1, IM V3
Mounting Position	Optional
Degree of Protection	IP40
Note on Degree of Protection	IP67 for motor housing including connection components
Concentricity, Coaxiality, Axial Runout to DIN SPEC 42955	N
Balance Quality	G 2.5
Detent Torque	<1.0% of peak torque
Bearing Lifetime Under Nominal Conditions	20000 h
Interface Code, Motor Out	80P
Electrical Connection 1, Connection Type	Hybrid plug
Electrical Connection 1, Connector System	M23x1
Electrical Connection 1, Number of Connections/Cores	15
Electrical Connection 1, Connection Pattern	00995913
Pollution Degree	2
Note on Materials	RoHS-compliant
Corrosion Resistance Class CRC	0 - No corrosion stress
LABS / PWIS Conformity	VDMA24364 zone III
Vibration Resistance	Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock Resistance	Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Approval	RCM trademark, German Technical Control Board (TÜV), c UL us - Recognized (OL)
CE Mark	To EU EMC Directive, To EU Low Voltage Directive, In accordance with EU RoHS Directive
UKCA Marking	To UK RoHS instructions, To UK regulations for electrical equipment
Certificate Issuing Authority	TÜV 968/INS 464.00/24, UL E342973
Nominal Operating Voltage DC	325 V
Type of Winding Switch	Star inside
Number of Pole Pairs	5
Standstill Torque	3.5 Nm
Nominal Torque	2.9 Nm
Peak Torque	9.9 Nm
Nominal Rotary Speed	3000 rpm
Maximum Rotational Speed	6400 rpm
Maximum Mechanical Speed	14000 rpm
Angular Acceleration	≤100000 rad/s²
Nominal Power Rating of Motor	910 W
Continuous Stall Current	6.7 A
Nominal Motor Current	5.5 A
Peak Current	27.3 A
Motor Constant	0.53 Nm/A
Standstill Torque Constant	0.6 Nm/A
Voltage Constant, Phase-to-Phase	36 mVmin
Phase-Phase Winding Resistance	1.13 Ohm
Phase-Phase Winding Inductance	5.2 mH
Winding Longitudinal Inductivity Ld, Phase	3.1 mH
Winding Cross Inductivity Lq, Phase	3.9 mH
Electric Time Constant	6.9 ms
Thermal Time Constant	48 min
Thermal Resistance	0.68 K/W
Measuring Flange	250 x 250 x 15 mm, steel
Total Mass Moment of Inertia of Output	1.473 kgcm²
Product Weight	3290 g
Permissible Axial Shaft Load	120 N
Permissible Radial Shaft Load	620 N
Rotor Position Sensor	Absolute multi-turn safety encoder
Rotor Position Sensor Manufacturer Designation	EQI 1131
Rotor Position Sensor, Absolute Detectable Revolutions	4096
Rotor Position Encoder Interface	EnDat® 22
Rotor Position Sensor, Encoder Measuring Principle	Inductive
Rotor Position Sensor, DC Operating Voltage	5 V
Rotor Position Sensor, DC Operating Voltage Range	3.6 V ... 14 V
Rotor Position Sensor, Position Values per Revolution	524288
Rotor Position Transducer Resolution	19 bit
Rotor Position Sensor, System Accuracy of Angle Measurement	-120 arcsec ... 120 arcsec
Safety Device	Safety device
Maximum SIL	Safety integrity level 3, see user documentation
Safety Sub-Functions up to SIL2	Reliable recording and transmission of single-turn position data
Safety Sub-Functions up to SIL3	Reliable recording and transmission of single-turn position data, only with additional software function in the servo drive
Maximum PL and Category	Performance Level e, category 3, see user documentation
Safety Sub-Function up to PL d, Cat. 3	Reliable recording and transmission of single-turn position data
Safety Sub-Function up to PL e, Cat. 3	Reliable recording and transmission of single-turn position data, only with additional software function in the servo drive
PFHd, Subcomponent	15 x 10E-9, encoder
Duration of Use Tm, Subcomponent	20 years, rotor position sensor
Energy Efficiency	ENEFF (CN) / Class 2

Common Applications

• Packaging machine axes for sealing, indexing, cutting, and synchronized product movement.
• Food processing automation where controlled rotary motion and accurate positioning are required.
• CNC machine tools and special-purpose machines used in Coimbatore engineering industries.
• Textile machinery automation, including winding, handling, and precision movement systems.
• Metal processing, mining equipment, and material handling systems requiring dynamic servo motion.
• Automated inspection, pick-and-place, and positioning systems in industrial production lines.

Why Buy from Murali Pneumatics?

• Authorized Festo Channel Partner in Coimbatore since 1991.
• 100% genuine Festo products with full Festo warranty and proper technical documentation support.
• Ready stock support for popular Festo pneumatic and electric automation products at our Coimbatore store.
• Expert technical support for motor selection, servo drive compatibility, cables, and accessories — call +91 98422 47546.

Compatible Accessories

• Compatible Festo servo drive selected according to motor rating, encoder interface, and safety function requirement.
• Hybrid motor cable with suitable M23x1 connection system.
• Mounting flange, coupling, gearbox, and mechanical adapter components based on machine design.
• Servo drive accessories, braking resistor, and electrical protection components where required by the application.
• Control cabinet wiring, connectors, and commissioning accessories for electric automation systems.
• All accessories available from stock. Ask us to bundle your complete assembly.
