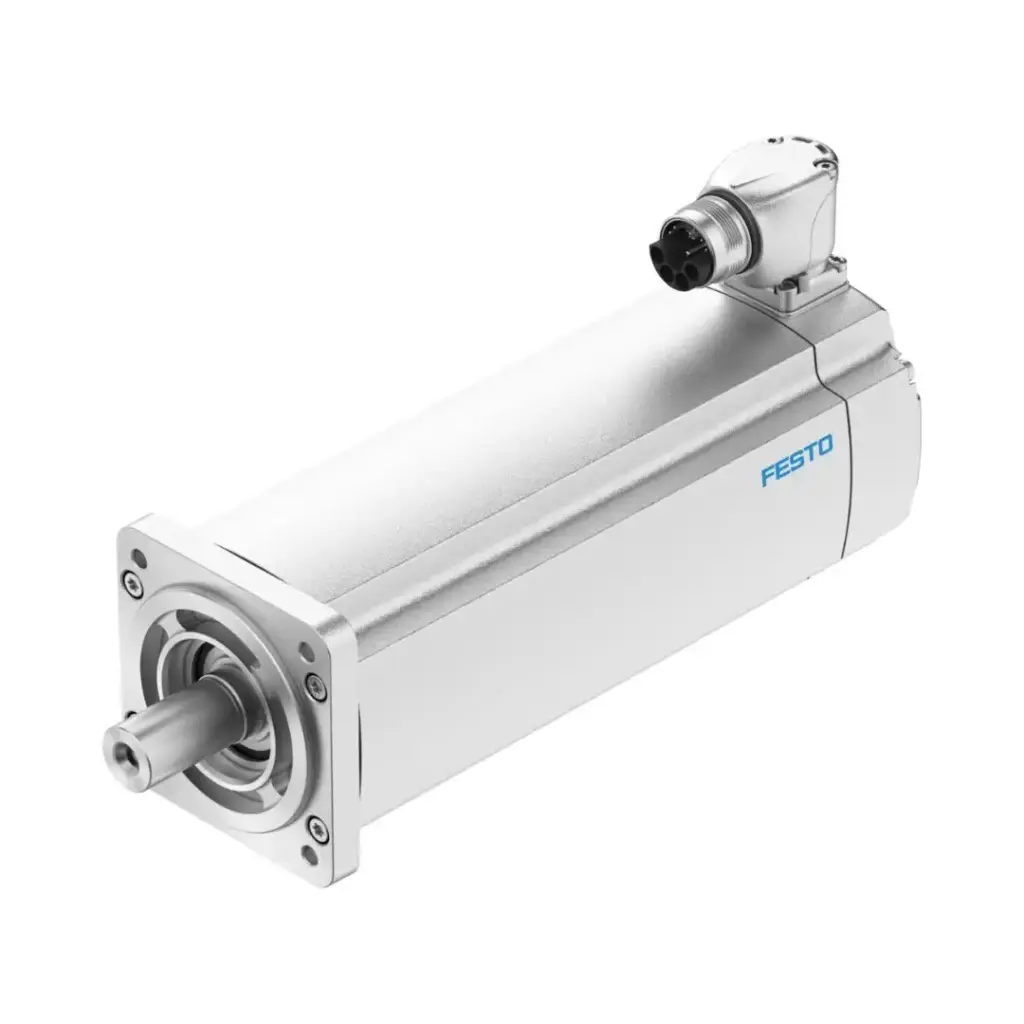

Festo EMMT-AS-80-H-HS-RMYB Servo Motor for Precision Electric Automation

The Festo EMMT-AS-80-H-HS-RMYB is a high-performance servo motor from the EMMT-AS series, designed for demanding electric automation applications where accurate positioning, reliable torque delivery, and continuous-duty operation are important. With a nominal power rating of 1070 W, 3000 rpm nominal speed, and integrated absolute multi-turn safety encoder, this motor is suitable for modern machine builders who need repeatable motion control with dependable feedback. This model is especially useful in packaging machines, food processing lines, material handling systems, mining and metals automation, and other servo-driven machinery where torque stability, encoder accuracy, and brake holding capability are required. Murali Pneumatics supplies genuine Festo servo motors and compatible accessories in Coimbatore with technical support for correct selection.

Key Features

• 1070 W nominal motor power — suitable for medium-duty servo motion tasks in automated machinery.
• 3.4 Nm nominal torque and 13.5 Nm peak torque — supports both continuous operation and short high-load movements.
• 3000 rpm nominal speed — ideal for dynamic positioning, indexing, and controlled rotary motion.
• Absolute multi-turn safety encoder — provides reliable rotor position feedback for precision servo control.
• Integrated 24 V DC holding brake — helps hold the motor shaft in position when the drive is disabled.
• Hybrid M23x1 plug connection — combines motor and feedback connection in a compact industrial connector format.
• IP40 rating with IP67 motor housing when connection components are included — suitable for protected industrial installations.
• S1 continuous-duty rating — designed for continuous operation under rated conditions.
• Safety functions up to SIL3 and PL e, Cat. 3 — suitable for safety-related position feedback when used with the required drive and software functions.
• RoHS compliant and CE / UKCA marked — supports compliance requirements for industrial machinery projects.

Technical Specifications

Parameter	Value
Festo Part Number	8185114
Product Type	Servo Motor
Series	EMMT-AS
Model	EMMT-AS-80-H-HS-RMYB
Product Category	Servo Motor
Typical Uses	Food and packaging, mining and metals, electric automation portfolio, electric automation highlights
Ambient Temperature	-40 °C ... 40 °C
Note on Ambient Temperature	Up to 80 °C with derating of -1.5% per degree Celsius
Maximum Installation Height	4000 m
Note on Maximum Installation Height	As of 1000 m: only with derating of -1.0% per 100 m
Storage Temperature	-40 °C ... 70 °C
Relative Air Humidity	0 - 90%
Conforms to Standard	IEC 60034
Temperature Class as per EN 60034-1	F
Maximum Winding Temperature	155 °C
Rating Class as per EN 60034-1	S1
Temperature Monitoring	Digital motor temperature transmission via EnDat 2.2
Motor Type to EN 60034-7	IM V1, IM V3
Mounting Position	Any
Degree of Protection	IP40
Note on Degree of Protection	IP67 for motor housing including connection components
Concentricity, Coaxiality, Axial Runout to DIN SPEC 42955	N
Balance Quality	G 2.5
Detent Torque	<1.0% of peak torque
Bearing Lifetime Under Nominal Conditions	20000 h
Interface Code, Motor Out	80P
Electrical Connection 1, Connection Type	Hybrid plug
Electrical Connection 1, Connector System	M23x1
Electrical Connection 1, Number of Connections/Cores	15
Electrical Connection 1, Connection Pattern	00995913
Pollution Degree	2
Note on Materials	RoHS compliant
Corrosion Resistance Class CRC	0 - No corrosion stress
LABS / PWIS Conformity	VDMA24364 zone III
Vibration Resistance	Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock Resistance	Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Approval	RCM, German Technical Control Board TÜV, c UL us - Recognised Oil
CE Mark	To EU EMC Directive, EU Low Voltage Directive, EU RoHS Directive
UKCA Marking	To UK RoHS instructions and UK regulations for electrical equipment
Certificate Issuing Authority	TÜV 968/INS 464.00/24, UL E342973
Nominal Operating Voltage DC	565 V
Type of Winding Switch	Star inside
Number of Pole Pairs	5
Standstill Torque	4.3 Nm
Nominal Torque	3.4 Nm
Peak Torque	13.5 Nm
Nominal Rotary Speed	3000 rpm
Maximum Rotational Speed	6500 rpm
Maximum Mechanical Speed	14000 rpm
Angular Acceleration	≤100000 rad/s²
Nominal Power Rating of Motor	1070 W
Continuous Stall Current	4.8 A
Nominal Motor Current	3.8 A
Peak Current	21.7 A
Motor Constant	0.9 Nm/A
Standstill Torque Constant	1 Nm/A
Voltage Constant, Phase-to-Phase	61.4 mVmin
Phase-Phase Winding Resistance	2.21 Ohm
Phase-Phase Winding Inductance	10.7 mH
Winding Longitudinal Inductivity Ld, Phase	6.6 mH
Winding Cross Inductivity Lq, Phase	8 mH
Electric Time Constant	7.2 ms
Thermal Time Constant	51 min
Thermal Resistance	0.65 K/W
Measuring Flange	250 x 250 x 15 mm, steel
Total Mass Moment of Inertia of Output	2.43 kgcm²
Product Weight	4750 g
Permissible Axial Shaft Load	120 N
Permissible Radial Shaft Load	620 N
Rotor Position Sensor	Absolute multi-turn safety encoder
Rotor Position Sensor Manufacturer Designation	EQI 1131
Rotor Position Sensor, Absolute Detectable Revolutions	4096
Rotor Position Encoder Interface	EnDat 22
Rotor Position Sensor, Encoder Measuring Principle	Inductive
Rotor Position Sensor DC Operating Voltage	5 V
Rotor Position Sensor DC Operating Voltage Range	3.6 V ... 14 V
Rotor Position Sensor Position Values Per Revolution	524288
Rotor Position Transducer Resolution	19 bit
Rotor Position Sensor System Accuracy of Angle Measurement	-120 arcsec ... 120 arcsec
Brake Holding Torque	7 Nm
Operating Voltage DC for Brake	24 V
Brake Current Consumption	0.63 A
Power Consumption, Brake	15 W
Brake Coil Resistance	38.4 Ohm
Brake Coil Inductivity	900 mH
Brake Separation Time	≤45 ms
Brake Closing Time	≤30 ms
DC Brake Response Delay	≤4 ms
Maximum Brake No-Load Speed	10000 rpm
Maximum Friction Per Braking Process	12000 J
Number of Emergency Stops Per Hour	1
Total Brake Friction	2400 kJ
Mass Moment of Inertia of Brake	0.459 kgcm²
Switching Cycles Holding Brake	10 million idle actuations without friction work
Safety Device	Safety device
Maximum SIL	Safety integrity level 3, see user documentation
Safety Sub-Functions up to SIL2	Reliable recording and transmission of single-turn position data
Safety Sub-Functions up to SIL3	Reliable recording and transmission of single-turn position data, only with additional software function in the servo drive
Maximum PL and Category	Performance Level e, category 3, see user documentation
Safety Sub-Function up to PL d, Cat. 3	Reliable recording and transmission of single-turn position data
Safety Sub-Function up to PL e, Cat. 3	Reliable recording and transmission of single-turn position data, only with additional software function in the servo drive
PFHd, Subcomponent	15 x 10E-9, encoder
Duration of Use Tm, Subcomponent	20 years, rotor position encoder
Energy Efficiency	ENEFF CN / Class 2

Common Applications

• Servo-driven packaging machines used for indexing, cutting, filling, sealing, and synchronized conveyor movement.
• Food processing automation where controlled motion and repeatable positioning are required.
• Textile machinery upgrades in Coimbatore and South Indian plants, including winding, feeding, and controlled rotary movement.
• CNC and machine tool automation where accurate axis movement and encoder feedback are important.
• Mining and metals handling systems requiring robust servo motion with reliable torque output.
• Automated assembly machines using electric motion instead of pneumatic or hydraulic actuation.

Why Buy from Murali Pneumatics?

• Authorized Festo Channel Partner in Coimbatore since 1991.
• Supply of 100% genuine Festo products with full Festo warranty support.
• Technical guidance for selecting compatible servo drives, cables, connectors, and accessories.
• For product availability and application support, call or WhatsApp +91 98422 47546.

Compatible Accessories

• Compatible Festo servo drives selected according to motor voltage, current, encoder interface, and brake requirements.
• Hybrid motor cables with M23x1 connector system suitable for the EMMT-AS motor connection.
• Brake connection accessories for 24 V DC holding brake wiring.
• Mounting hardware, couplings, gearboxes, and mechanical adapters based on machine design.
• Servo drive programming and commissioning accessories as required for the automation system.
• All accessories available from stock. Ask us to bundle your complete assembly.
