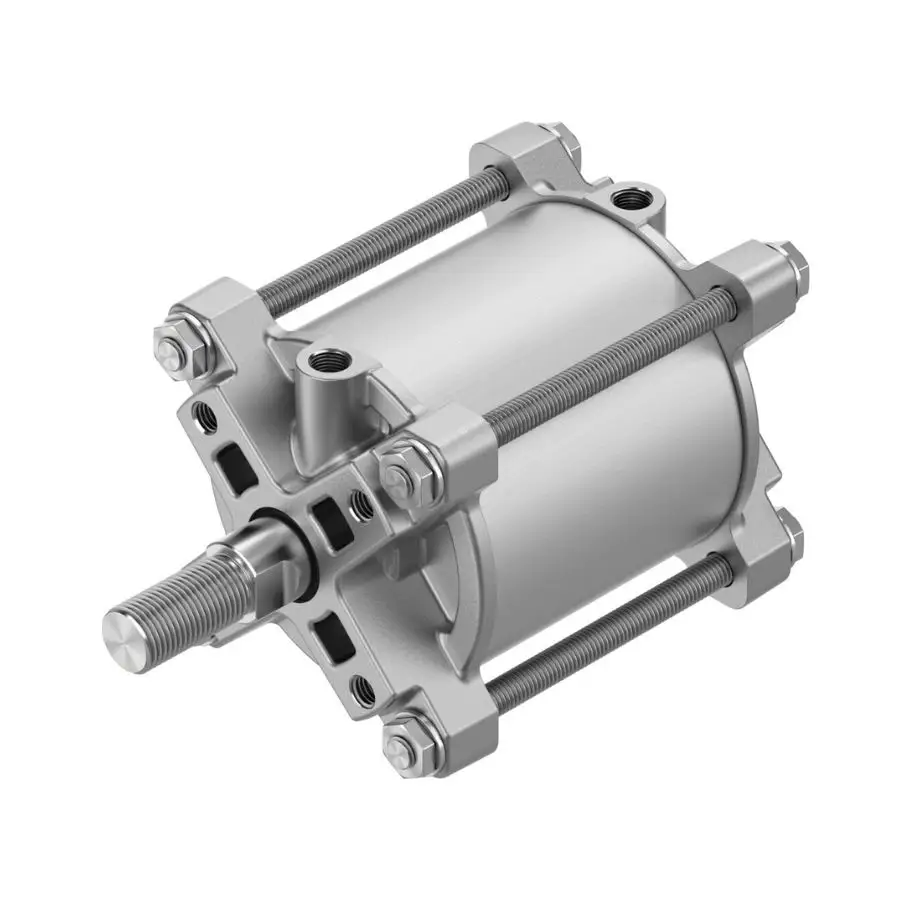

Festo DFPC-80-80-D-Linear Valve Actuator | 80mm Stroke | Murali Pneumatics Coimbatore
The Festo DFPC-80-80-D is a double-acting pneumatic linear actuator designed for reliable operation of process valves in demanding industrial environments. Featuring an 80 mm piston diameter, 80 mm stroke, and ISO 5210 F07 flange mounting, it delivers high thrust with smooth operation.
Designed for industries including food processing, packaging, mining, and metal processing, this actuator offers dependable valve automation with excellent durability.
Festo Part Number: 8110816
This actuator is supplied as the pneumatic drive only. Valve, mounting hardware beyond the supplied spacer bolt, proximity switch and pneumatic fittings are ordered separately as required.
Available with Murali Pneumatics, your authorized Festo dealer in Coimbatore.
Product Description
Festo DFPC-80-80-D Linear Drive for Process Valves
The Festo DFPC-80-80-D is a robust pneumatic linear actuator developed specifically for automating process valves in industrial applications. Designed for reliable operation under demanding conditions, it combines high force output, ISO-standard mounting, and corrosion-resistant construction for long service life.
The DFPC series is widely used where accurate linear movement is required for globe valves, gate valves and other process valve applications. Its double-acting piston design provides controlled opening and closing while maintaining excellent reliability in continuous industrial operation.
Key Features
- 80 mm piston diameter — Provides high thrust for reliable valve operation.
- 80 mm stroke — Suitable for a wide range of linear process valves.
- Double-acting operation — Positive actuation during both opening and closing.
- ISO 5210 F07 mounting — Standardized installation on compatible valve assemblies.
- Elastic cushioning at both ends — Reduces impact and improves actuator life.
- Operating pressure from 2 to 8 bar — Compatible with standard industrial compressed air systems.
- Position sensing capability — Supports proximity switch installation for feedback.
- High corrosion-resistant materials — Aluminium body with stainless steel moving components.
- Suitable for ATEX applications — Appropriate for hazardous environments including Zones 1, 2, 21 and 22.
- RoHS compliant — Meets modern environmental requirements.
Technical Specifications
| Festo Part Number | 8110816 |
| Model | DFPC-80-80-D |
| Series | DFPC |
| Product Type | Linear Drive for Process Valves |
| Mode of Operation | Double-acting |
| Design | Piston, Piston Rod, Tie Rod, Cylinder Barrel |
| Valve Actuator Size | 80 |
| Piston Diameter | 80 mm |
| Stroke | 80 mm |
| Flange Hole Pattern | F07 |
| Standard | ISO 5210 |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Mounting Position | Any |
| Mounting Type | Flange mounting according to ISO 5210 with spacer bolt |
| Position Detection | Via proximity switch |
| Operating Pressure | 2–8 bar (0.2–0.8 MPa) |
| Nominal Operating Pressure | 6 bar (0.6 MPa) |
| Theoretical Force (Advance) | 3016 N |
| Theoretical Force (Return) | 2827 N |
| Impact Energy | 1.4 J |
| Air Consumption (Advance) | 0.352 l per 10 mm stroke |
| Air Consumption (Return) | 0.33 l per 10 mm stroke |
| Operating Medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Lubrication | Lubricated operation possible (must remain lubricated thereafter) |
| Ambient Temperature | -20°C to +80°C |
| Pneumatic Connection | G1/8 |
| Transport Vibration | Severity Level 1 (FN 942017-4 / EN 60068-2-6) |
| Shock Resistance | Severity Level 1 (FN 942017-5 / EN 60068-2-27) |
| LABS (PWIS) | VDMA24364 Zone III |
| Product Weight | 1720 g |
| Moving Mass (0 mm Stroke) | 451 g |
| Additional Moving Mass | 24.8 g per 10 mm stroke |
| Basic Weight | 1230.3 g |
| Additional Weight | 61.8 g per 10 mm stroke |
| Cover Material | Gravity die-cast aluminium |
| Cylinder Barrel | Smooth anodised wrought aluminium alloy |
| Piston Rod | High-alloy stainless steel |
| Tie Rod | High-alloy stainless steel |
| Nut Material | High-alloy stainless steel |
| Piston Rod Wiper | TPE-U (PU) |
| Static Seal Material | NBR |
| RoHS | Compliant |
Common Applications
- Process valve automation in food and beverage manufacturing.
- Packaging machine process valve control.
- Mining and metal processing plants.
- Chemical and pharmaceutical production systems.
- Textile dyeing and finishing process automation in Coimbatore industries.
- Industrial utility and process control installations.
Why Buy from Murali Pneumatics?
- Authorized Festo Channel Partner in Coimbatore since 1991.
- 100% genuine Festo products with manufacturer warranty.
- Experienced technical guidance for valve automation projects.
- Quick response for quotations and application assistance on WhatsApp +91 98422 47546.
Compatible Accessories
- Festo proximity switches
- Mounting kits
- Pneumatic tubing
- Push-in fittings
- Flow control valves
- Air preparation units (FRL)
- Solenoid valves for actuator control
- Silencers and exhaust accessories
- All accessories available from stock. Ask us to bundle your complete assembly.
