Festo DFPC-80-50-D Linear Drive – ISO 5210 Process Valve Actuator

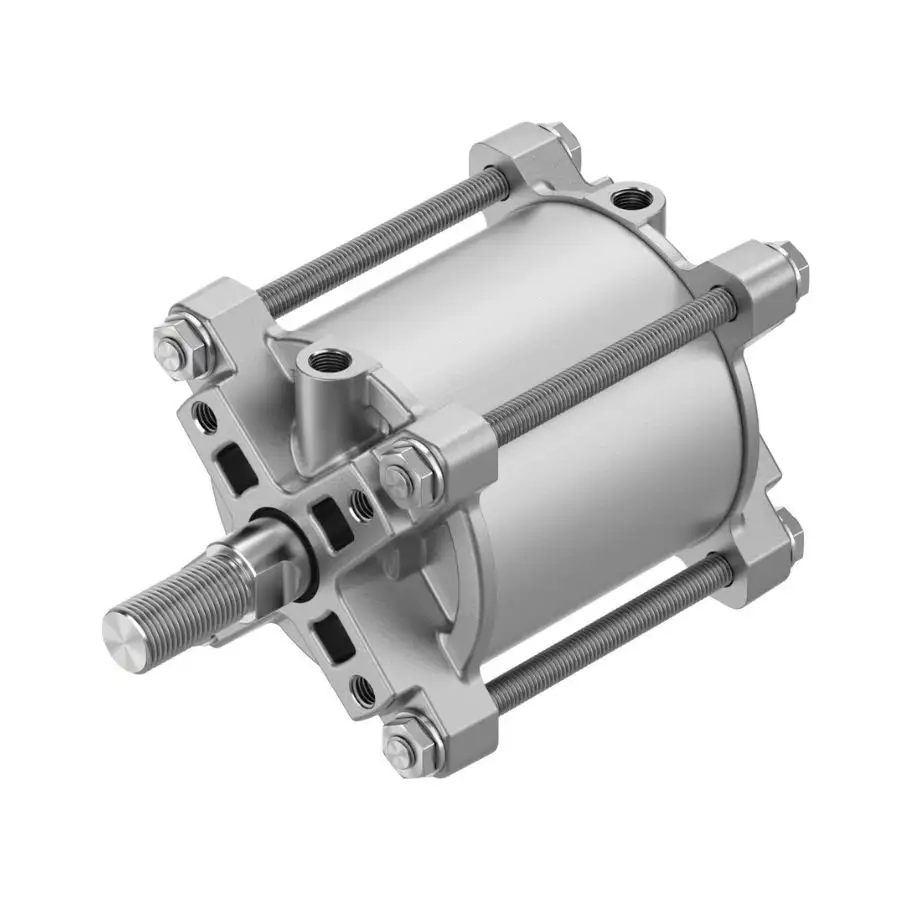

The Festo DFPC-80-50-D is a heavy-duty pneumatic linear drive from the DFPC series, purpose-engineered for actuating quarter-turn and linear process valves in accordance with ISO 5210. With an 80 mm piston bore, 50 mm stroke, and F07 flange hole pattern, this actuator slots directly onto ISO 5210-compliant valve stems without adapters. The DFPC series is rated for ATEX zones 1, 2, 21, and 22 — making it a go-to choice wherever process safety and explosion protection are mandatory.

Key Features

• ISO 5210 F07 Flange Compliance — Direct bolt-on mounting to standard process valve bodies; no custom adapters needed
• Double-Acting Operation — Air pressure drives both advance and return strokes for positive, reliable valve positioning in both directions
• 3016 N Advance Force at 6 bar — Sufficient thrust to actuate medium-duty gate, globe, and butterfly valves under process pressure
• ATEX Zone 1, 2, 21 & 22 Certified — Safe for use in flammable gas and combustible dust environments without additional enclosures
• High-Alloy Stainless Steel Piston Rod, Nut & Tie Rods — Corrosion-resistant construction for aggressive media, washdown environments, and outdoor installations
• Smooth-Anodised Aluminium Cylinder Barrel — Hard-wearing bore surface reduces seal wear and extends service life
• Elastic Cushioning at Both End Positions — Absorbs end-of-stroke impact (rated at 1.4 J) to protect the valve stem and actuator internals
• Proximity Switch Position Detection — Designed to accept standard proximity switches for valve open/close feedback to PLC or DCS
• Any Mounting Position — Unrestricted orientation allows integration into tight process skid layouts
• LABS (PWIS) Conformity to VDMA 24364 Zone III — Suitable for painting and finishing lines where silicone contamination must be avoided

Technical Specifications

Festo Part Number	8110815
Model	DFPC-80-50-D
Product Type	Pneumatic Linear Drive for Process Valves
Mode of Operation	Double-acting
Design	Piston / Tie-rod
Piston Diameter	80 mm
Stroke	50 mm
Flange Hole Pattern	F07 per ISO 5210
Fitting Connection Standard	ISO 5210
Operating Pressure	2 … 8 bar (0.2 … 0.8 MPa)
Nominal Operating Pressure	6 bar (0.6 MPa)
Theoretical Force – Advance Stroke (6 bar)	3016 N
Theoretical Force – Return Stroke (6 bar)	2827 N
Air Consumption – Advance Stroke	0.352 l per 10 mm stroke
Air Consumption – Return Stroke	0.33 l per 10 mm stroke
Impact Energy at End Positions	1.4 J
Cushioning	Elastic cushioning rings/plates at both ends
Position Detection	Via proximity switch
Pneumatic Connection	G1/8
Operating Medium	Compressed air per ISO 8573-1:2010 [7:4:4]
Lubricated Operation	Possible (once lubricated, must remain lubricated)
Ambient Temperature	-20 °C … +80 °C
Mounting Position	Any
Type of Mounting	Flange per ISO 5210; with spacer bolt
Vibration Resistance	Severity Level 1 per FN 942017-4 / EN 60068-2-6
Shock Resistance	Severity Level 1 per FN 942017-5 / EN 60068-2-27
ATEX Approval	Zone 1, 2, 21, 22
LABS (PWIS) Conformity	VDMA 24364 Zone III
Product Weight	1540 g
Moving Mass (0 mm stroke)	451 g
Material – Cylinder Barrel	Smooth-anodised wrought aluminium alloy
Material – Cover	Gravity die-cast aluminium
Material – Piston Rod	High-alloy stainless steel
Material – Tie Rod	High-alloy stainless steel
Material – Nut	High-alloy stainless steel
Material – Static Seals	NBR
Material – Piston Rod Wiper	TPE-U (PU)
RoHS Compliance	Yes

Common Applications

• Chemical & Petrochemical Process Plants — Actuating gate and globe valves on process pipelines in ATEX-classified hazardous zones
• Food & Packaging Lines — Valve actuation on filling, dosing, and CIP (clean-in-place) systems; LABS conformity prevents finish defects downstream
• Mining & Metals Processing — Robust stainless steel construction handles abrasive media, high humidity, and aggressive wash-down in ore processing
• Water Treatment & Pump Houses — Outdoor installation in any orientation for motorised gate valve automation on large pipe manifolds
• Pharmaceutical & Biotech Facilities — Hygienic valve control with corrosion-resistant internals suitable for sterile process environments
• Foundries & Metal Casting — High ambient temperature tolerance (up to 80 °C) keeps it operational in furnace-adjacent valve automation

Why Buy from Murali Pneumatics?

• Authorized Festo Channel Partner since 1991 — Over three decades supplying genuine Festo actuators to Coimbatore's process and manufacturing industries
• 100% Genuine Products — Every DFPC unit comes with full Festo warranty; no grey-market or counterfeit risk
• Expert Application Support — Our team can help you select the right flange size, matching solenoid valve, and proximity switches for your specific process valve — call +91 98422 47546
• Fast Local Availability — Popular DFPC sizes stocked at our Mill Road store; same-day dispatch for urgent plant requirements

Compatible Accessories

• Solenoid Valves — Festo VUVS or MFH series G1/8 valves for pneumatic control of the DFPC
• Push-In Fittings — Festo QS-G1/8 series fittings for quick, leak-free air line connections
• Pneumatic Tubing — 6 mm or 8 mm OD polyurethane tubing compatible with G1/8 port fittings
• Proximity Switches — Festo SME or SMT series sensors for open/close position feedback
• ISO 5210 Mounting Kits — Spacer bolts and coupling kits for specific valve stem configurations
• FRL Units — Festo filter-regulator-lubricator sets to maintain ISO 8573-1 [7:4:4] air quality

All accessories available from stock. Ask us to bundle your complete assembly.
