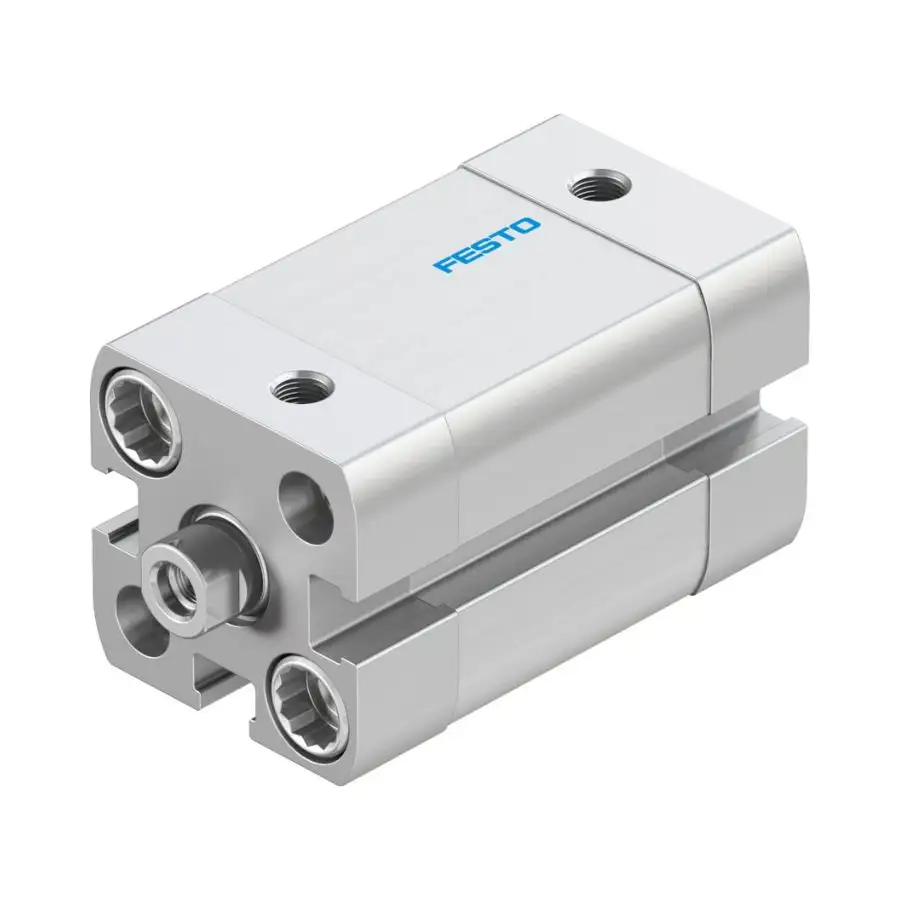

The Festo ADN-16-10-I-P-A is a compact double-acting pneumatic cylinder built to ISO 21287, offering a 16mm bore and 10mm stroke in a slim, space-saving envelope. It features a female thread piston-rod end, elastic cushioning at both ends, and is compatible with standard Festo proximity switches for position detection — making it well-suited for close-tolerance automation where mounting space is tight. This cylinder performs reliably in packaging, food processing, and precision assembly applications where compact actuation with clean-room capability (ISO Class 5) is required. Festo Part Number: 536227. Available with Murali Pneumatics, your authorized Festo dealer in Coimbatore.
Note: This cylinder is supplied as a base mechanical unit. Proximity switches/sensors for position detection and mounting accessories must be ordered separately.
The Festo ADN-16-10-I-P-A belongs to the ADN series of compact pneumatic cylinders designed and manufactured to ISO 21287. With a 16mm bore and a 10mm stroke, this double-acting cylinder delivers precise, short-travel actuation in a minimal footprint — making it one of the go-to choices wherever standard cylinders simply will not fit. The ADN series is trusted across automation globally for its dimensional interchangeability, clean construction, and consistent performance across a wide temperature range.
Key Features
ISO 21287 Compliance — Dimensionally interchangeable with other ISO 21287 cylinders; simplifies replacement and standardisation across your machine build.
Double-Acting Operation — Positive air pressure drives both advance and return strokes, ensuring controlled, repeatable movement in both directions without relying on springs.
Female Thread Piston-Rod End (M4) — Internal thread on the rod end allows direct connection to push rods, fixtures, and tooling without additional adaptors in most applications.
Elastic Cushioning at Both Ends — Built-in cushioning rings absorb end-of-stroke impact energy (rated 0.15 J), reducing noise and mechanical shock without the need for adjustable throttle cushions.
Position Detection Ready — Slot or groove for standard Festo proximity switches is built into the cylinder body; no external sensor brackets required in most mounting configurations.
ISO Class 5 Cleanroom Suitability — Measured per ISO 14644-14, this cylinder is suitable for controlled-environment applications including pharmaceutical, food processing, and electronics assembly.
Flexible Mounting — Can be mounted via through-holes, female thread, or with optional accessories — accommodating nearly any machine frame orientation.
Wide Operating Temperature Range — Rated from -20 °C to +80 °C ambient, covering both cold-store and hot industrial environments without special variants.
LABS/PWIS Conformity (VDMA24364-B1/B2-L) — Safe for use in spray-painting and coating environments; no paint-wetting impairment substances in materials.
RoHS Compliant Materials — Fully compliant with EU RoHS directive; suitable for CE-marked machinery builds.
Technical Specifications
Parameter
Value
Festo Part Number
536227
Product Type
Compact Pneumatic Cylinder
Series
ADN
Based on Standard
ISO 21287
Mode of Operation
Double-acting
Piston Diameter (Bore)
16 mm
Stroke
10 mm
Piston Rod Thread
M4 (Female thread)
Variants
Piston rod at one end
Pneumatic Connection
M5
Operating Pressure
1 bar … 10 bar (0.1 MPa … 1 MPa)
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Lubrication
Lubricated operation possible (once lubricated, must always be lubricated)
Cushioning
Elastic cushioning rings/plates at both ends
Impact Energy at End Positions
0.15 J
Theoretical Force – Advance Stroke (6 bar)
121 N
Theoretical Force – Return Stroke (6 bar)
90 N
Position Detection
Via proximity switch
Mounting Position
Any
Type of Mounting
Through-hole / Female thread / With accessories
Ambient Temperature
-20 °C … +80 °C
Moving Mass
18 g
Product Weight
86 g
Cylinder Barrel Material
Smooth-anodised wrought aluminium alloy
Cover Material
Anodised wrought aluminium alloy
Piston Rod Material
High-alloy steel
Seal Material
TPE-U (PUR)
Collar Screws Material
Steel
Corrosion Resistance Class (CRC)
2 – Moderate corrosion stress
Cleanroom Suitability
Class 5 per ISO 14644-1 (measured per ISO 14644-14)
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
RoHS Compliant
Yes
Common Applications
Packaging Machinery — Short-stroke ejectors, flap actuators, and label press mechanisms on horizontal form-fill-seal and cartoning lines.
Textile Machinery in Coimbatore — Yarn guide positioning, bobbin clamps, and small pick-and-place actuators on spinning and winding frames where compact cylinder bodies are mandatory.
Pharmaceutical and Food Processing — ISO Class 5 cleanroom rating makes this cylinder suitable for tablet press guiding, blister pack tooling, and food pouch sealing actuators.
Electronics and PCB Assembly — Component pressing, board clamping, and small part transfer on SMT and through-hole assembly lines.
Plastic Injection Moulding — Core pin actuation, runner gate operation, and small slide mechanisms on compact injection mould tools.
Automotive Assembly Jigs — Fixture clamping and part-present sensing integration in body shop and sub-assembly stations requiring space-efficient actuation.
Why Buy from Murali Pneumatics?
Authorized Festo Channel Partner since 1991 — Over three decades of Festo product expertise, serving industries across Coimbatore and Tamil Nadu.
100% Genuine Products with Full Festo Warranty — Every ADN cylinder supplied by us is sourced directly through the official Festo supply chain. No grey-market products.
Ready Stock of Popular ADN Variants — Common bore and stroke combinations are maintained at our Mill Road, Coimbatore store for same-day or next-day supply.
Expert Technical Support — Our team can help you select the correct mounting hardware, sensor, and flow control combination. Call or WhatsApp: +91 98422 47546.
Compatible Accessories
Proximity Switches / Sensors — SME, SMT, or SIES series Festo sensors compatible with the ADN T-slot for non-contact position detection (order separately).
Mounting Brackets and Flanges — LBN, BNFW, or FNC series Festo mounting kits for foot, flange, or pivot mounting of ADN cylinders.
Flow Control Valves — GRLA or GRLZ series one-way flow controls (M5 thread) for speed regulation on advance and return strokes.
Push-In Fittings — QS-M5-4 or equivalent M5 push-in fittings for 4mm OD tubing connection to the cylinder ports.
Polyurethane Tubing — PUN or PLN series 4mm OD tubing suitable for M5 connections on this cylinder.
Clevis and Rod Eye Connectors — M4 thread clevis joints (SGS, SGA series) for angular or floating rod-end connections.
All accessories are available from stock at Murali Pneumatics, Coimbatore. Ask us to bundle your complete cylinder assembly — fittings, tubing, sensor, and mounting hardware — in a single order.
