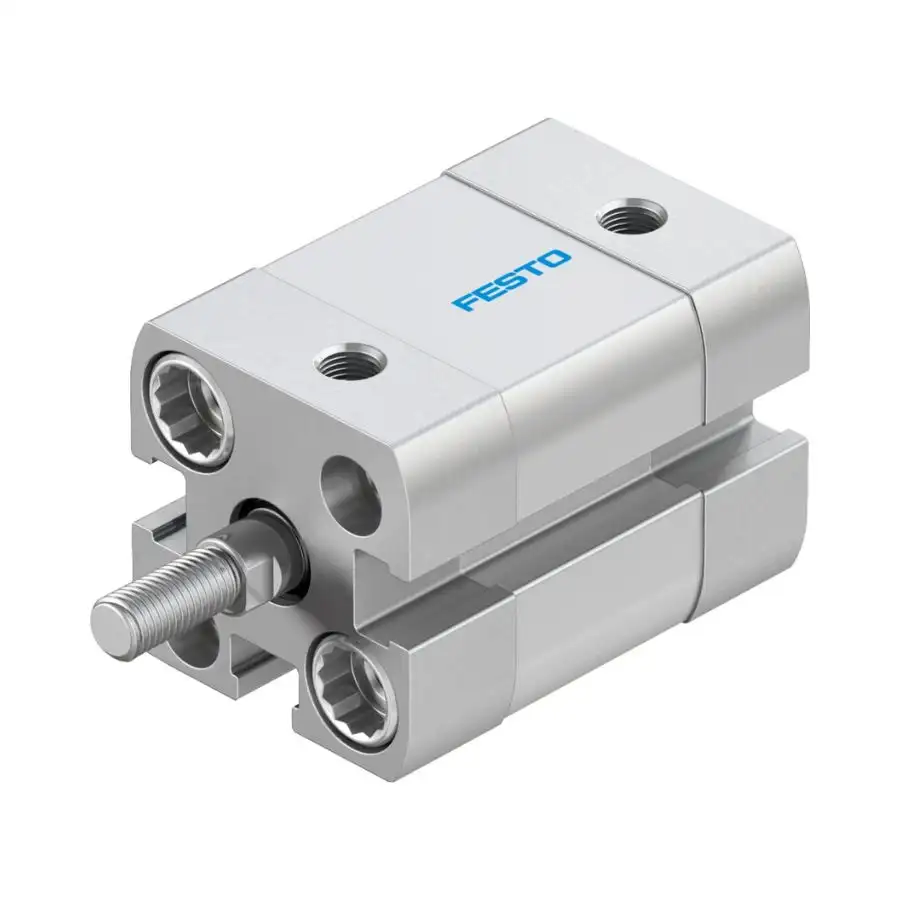

Festo ADN-12-5-A-P-A Compact Pneumatic Cylinder

The Festo ADN-12-5-A-P-A is a compact double-acting pneumatic cylinder from the ADN series, designed for short-stroke linear movement where installation space is limited. With a 12 mm piston diameter and 5 mm stroke, this cylinder is suitable for precise clamping, pushing, positioning, and small automation movements in compact machine layouts. The ADN series is based on ISO 21287 and is widely used where a shorter cylinder body is preferred compared to standard round cylinders. This model is suitable for industries such as food and packaging, battery cell production, cleanroom machinery, mining and metals, and selected ATEX zone applications when used according to the machine design requirements.

Key Features

• Compact ADN series design — useful where machine space is limited and a short cylinder body is required.
• 12 mm piston diameter — provides compact force output for small automation and handling tasks.
• 5 mm stroke length — suitable for short pushing, clamping, stopping, and indexing movements.
• Double-acting operation — controlled advance and return movement using compressed air.
• Elastic cushioning rings at both ends — helps reduce impact at end positions in short-stroke operation.
• M5 pneumatic connection — suitable for compact pneumatic tubing and fittings used in small machine assemblies.
• Position detection via proximity switch — allows sensor-based feedback when compatible proximity switches are fitted separately.
• ISO 21287 based design — supports standard compact cylinder replacement and machine integration.
• Cleanroom suitability Class 5 — suitable for clean production environments when installed correctly.
• RoHS-compliant materials — suitable for modern industrial machine building requirements.

Technical Specifications

Parameter	Value
Festo Part Number	536204
Model	ADN-12-5-A-P-A
Product Category	Compact cylinder
Series	ADN
Stroke	5 mm
Piston Diameter	12 mm
Piston Rod Thread	M5
Based on Standard	ISO 21287
Cushioning	Elastic cushioning rings/plates at both ends
Mounting Position	Optional
Mode of Operation	Double-acting
Piston-Rod End	Male thread
Position Detection	Via proximity switch
Symbol	00991217
Variant	Piston rod at one end
Operating Pressure	1 bar ... 10 bar / 0.1 MPa ... 1 MPa / 14.5 psi ... 145 psi
Operating Medium	Compressed air to ISO 8573-1:2010 [7:4:4]
Note on Operating and Pilot Medium	Lubricated operation possible; once used with lubrication, lubricated operation must always be continued
Corrosion Resistance Class CRC	2 - Moderate corrosion stress
LABS / PWIS Conformity	VDMA24364-B1/B2-L
Cleanroom Suitability	Class 5 according to ISO 14644-1, measured according to ISO 14644-14
Ambient Temperature	-20 °C ... 80 °C
Impact Energy in End Positions	0.07 J
Theoretical Force at 0.6 MPa / 6 bar / 87 psi, Return Stroke	51 N
Theoretical Force at 0.6 MPa / 6 bar / 87 psi, Advance Stroke	68 N
Moving Mass	13 g
Product Weight	70 g
Type of Mounting	With through-hole, via female thread, with accessories
Pneumatic Connection	M5
Note on Materials	RoHS-compliant
Material Collar Screws	Steel
Material Cover	Anodised wrought aluminium alloy
Material Seals	TPE-U(PUR)
Material Piston Rod	High-alloy steel
Material Cylinder Barrel	Smooth-anodised wrought aluminium alloy

Common Applications

• Short-stroke clamping and stopper movement in packaging machines around Coimbatore and South India.
• Compact actuator movement in food processing lines where space-saving pneumatic motion is required.
• Battery cell production equipment requiring small, repeatable pneumatic positioning movements.
• Cleanroom-compatible automation where Class 5 suitability is required as part of the machine design.
• Textile machinery sub-assemblies such as yarn handling, guide movement, and compact machine fixtures.
• CNC and special purpose machines requiring small double-acting pneumatic cylinder movement.

Why Buy from Murali Pneumatics?

• Authorized Festo Channel Partner in Coimbatore since 1991.
• 100% genuine Festo products with full Festo warranty support.
• Ready stock of popular pneumatic cylinders, valves, fittings, tubing, and accessories at our Coimbatore store.
• Expert technical support for cylinder selection, replacement matching, and accessory pairing — call +91 98422 47546.

Compatible Accessories

• Festo proximity switches suitable for ADN compact cylinders.
• Mounting brackets and cylinder accessories based on machine installation style.
• M5 pneumatic fittings for compact tubing connections.
• PU pneumatic tubing suitable for compressed air lines.
• Flow control valves for speed adjustment in advance and return strokes.
• Silencers, connectors, and pneumatic preparation accessories for complete machine installation.
• All accessories available from stock. Ask us to bundle your complete assembly.
