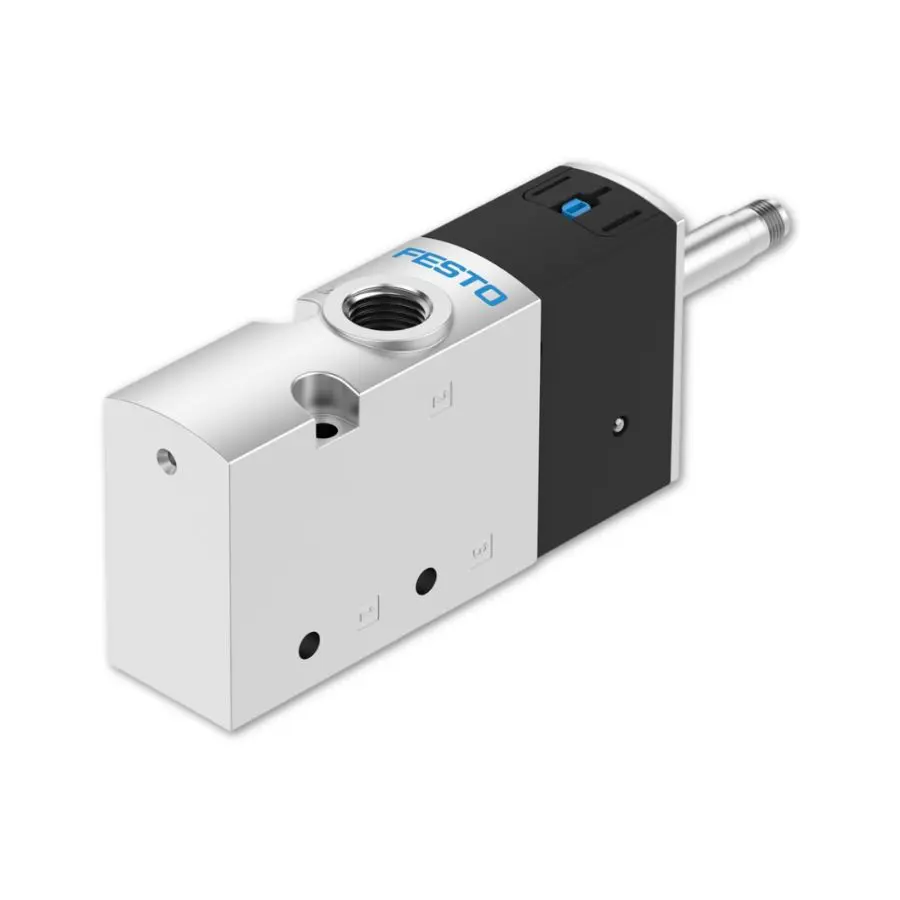

Festo VUVS-L25-M32C-MD-G14-FN – 3/2 Solenoid Valve | 1000 l/min | Murali Pneumatics Coimbatore
The Festo VUVS-L25-M32C-MD-G14-FN is a compact 3/2-way monostable solenoid valve designed for precise control of compressed air in automation systems. With a high flow rate of 1000 l/min and G1/4 ports, it balances performance and compact design.
Built for industrial reliability, it features pilot actuation, spring return, and soft sealing for consistent switching.
Ideal for machine builders, textile automation, and packaging systems.
Festo Part Number: 8192992
Note: Coil and connector may need to be ordered separately.
Available with Murali Pneumatics, your authorized Festo dealer in Coimbatore.
Product Description
Product Overview
The Festo VUVS-L25-M32C-MD-G14-FN belongs to the VUVS series of compact, high-performance directional control valves designed for demanding industrial automation applications. Known for their robust construction and high flow capacity, VUVS valves are widely used in systems where space-saving design and reliable switching are critical.
Key Features
- 3/2-way monostable function — ensures controlled air flow with automatic spring return
- High flow rate (1000 l/min) — supports efficient operation in high-demand applications
- Pilot actuated design — reduces actuation effort and improves reliability
- Soft sealing principle — ensures leak-tight performance and long service life
- Detenting manual override — allows easy manual operation during maintenance
- Internal pilot air supply — simplifies installation without external pilot lines
- Fast switching times — 29 ms ON and 125 ms OFF for responsive control
- ATEX zone compatibility — suitable for hazardous environments (Zone 1, 2, 21, 22)
- Cleanroom compliant (ISO Class 6) — suitable for controlled environments
- Corrosion resistance class CRC 2 — reliable in moderate industrial conditions
Technical Specifications
| Parameter | Value |
|---|---|
| Festo Part Number | 8192992 |
| Valve Function | 3/2-way, closed, monostable |
| Actuation Type | Electric |
| Valve Size | 26.5 mm |
| Nominal Flow Rate | 1000 l/min |
| Port Size | G1/4 |
| Operating Pressure | 2.5 – 8 bar (0.25 – 0.8 MPa) |
| Design | Piston gate valve |
| Sealing Principle | Soft |
| Reset Type | Mechanical spring |
| Manual Override | Detenting |
| Piloting Type | Pilot actuated |
| Pilot Air Supply | Internal |
| Switching Time ON | 29 ms |
| Switching Time OFF | 125 ms |
| Operating Medium | Compressed air (ISO 8573-1:2010 [7:4:4]) |
| Media Temperature | -10 °C to 60 °C |
| Ambient Temperature | -10 °C to 60 °C |
| Weight | 246 g |
| Housing Material | Die-cast aluminium (painted) |
| Seal Material | HNBR, NBR |
| Corrosion Resistance | CRC 2 |
| Cleanroom Class | ISO Class 6 |
| LABS Compliance | VDMA24364-B1/B2-L |
| Explosion Protection | ATEX Zones 1, 2, 21, 22 |
| RoHS | Compliant |
Common Applications
- Textile machinery – loom air control and actuator switching
- Packaging machines – pneumatic cylinder control in filling and sealing lines
- CNC machine automation – air flow switching for tool operations
- Plastic injection moulding – auxiliary pneumatic circuits
- Automotive assembly lines – controlled actuation systems
- Food processing equipment – cleanroom-compatible pneumatic control
Why Buy from Murali Pneumatics?
- Authorized FESTO Channel Partner in Coimbatore since 1991
- 100% genuine Festo products with manufacturer support
- Ready stock availability for fast dispatch
- Technical guidance from experienced pneumatic specialists
Compatible Accessories
- Festo solenoid coils (to be ordered separately)
- Electrical plug sockets
- Pneumatic push-in fittings (G1/4 compatible)
- Pneumatic tubing
- Silencers for exhaust ports
- Manifold mounting accessories
All accessories available from stock. Ask us to bundle your complete assembly.
