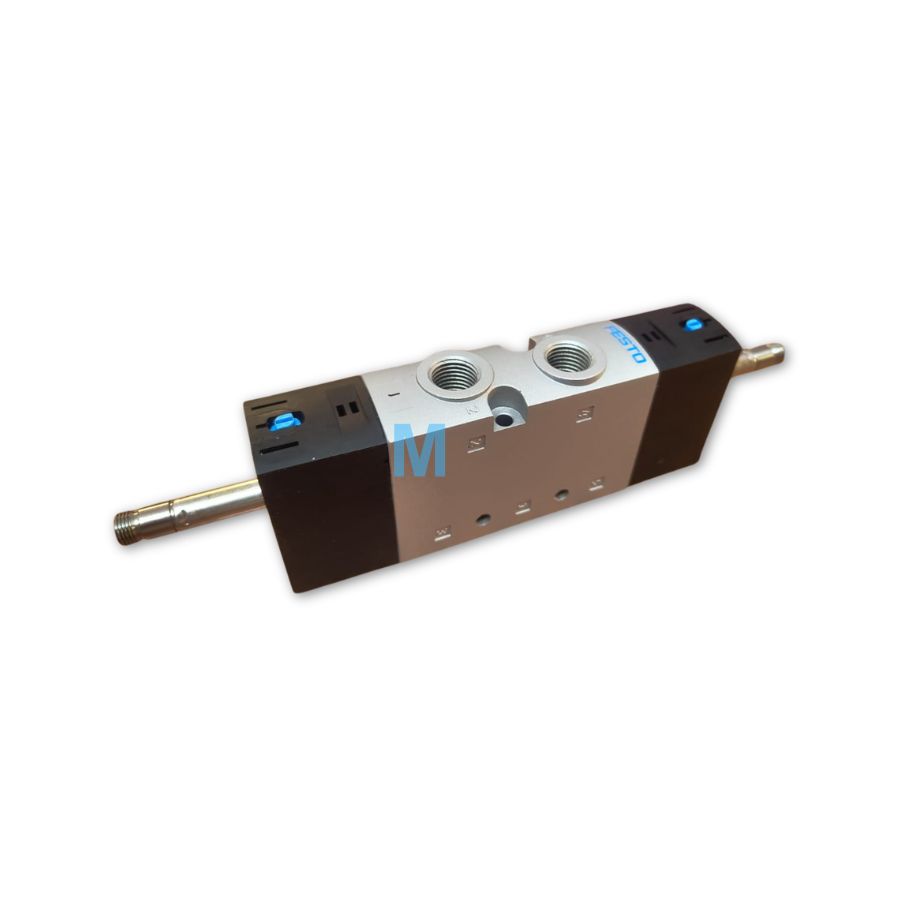

Festo VUVS-L25-B52-D-G14-F8 Solenoid Valve
5/2 bistable (double solenoid) directional control valve from the Festo VUVS series. Electrically actuated with a standard nominal flow rate of 1300 l/min and G1/4 pneumatic ports — well suited for medium to large cylinder control in industrial automation. Piston spool design with IP-rated construction for demanding factory environments. Festo Part No: 575516. Supplied without solenoid coil and plug socket — order separately for your required voltage. Available with Murali Pneumatics, your authorized Festo dealer in Coimbatore.
Product Description
The Festo VUVS-L25-B52-D-G14-F8 is a 5/2-way bistable solenoid valve from Festo's VUVS series — a compact yet robust platform designed for universal directional control in pneumatic systems. With a standard nominal flow rate of 1300 l/min and a piston spool construction rated for 1.5 to 10 bar operating pressure, this valve handles medium to heavy-duty cylinder actuation across a wide range of industrial applications. This is the base valve body supplied without solenoid coil or plug socket, giving you the flexibility to select the exact coil voltage and connector your system requires.
Key Features
- 5/2 bistable (double solenoid) — holds its last switched position without continuous power, reducing energy consumption
- 1300 l/min standard nominal flow rate — sufficient for medium to large bore pneumatic cylinders
- G1/4 threaded pneumatic ports (all 5 ports) — standard BSP connections for straightforward piping
- Piston spool design, 26.5 mm valve size — reliable high-cycle switching with consistent performance
- Die-cast aluminium housing (painted) with HNBR/NBR seals — corrosion-resistant and durable in harsh environments
- Manual override (detenting + non-detenting) — allows manual valve operation during commissioning, setup, or power failure
- Internal pilot air supply — no external pilot line needed for most applications
- 11 ms switching time (reversal) — fast response for high-speed automation sequences
- Flexible mounting: manifold rail or through-hole — adapts to panel mounting or valve terminal configurations
- ISO 14644-1 Class 6 cleanroom suitability — approved for controlled environments in electronics and pharmaceutical production
Technical Specifications
| Parameter | Value |
|---|---|
| Festo Part Number | 575516 |
| Valve Function | 5/2 bistable |
| Type of Actuation | Electric |
| Valve Size | 26.5 mm |
| Nominal Size | 6.9 mm |
| Standard Nominal Flow Rate | 1300 l/min (DIN 1343) |
| Operating Pressure | 1.5 – 10 bar (0.15 – 1 MPa) |
| Design | Piston gate valve |
| Sealing Principle | Soft |
| Manual Override | Detenting and Non-detenting |
| Type of Piloting | Pilot actuated |
| Pilot Air Supply | Internal |
| Pilot Pressure | 1.5 – 10 bar (0.15 – 1 MPa) |
| Flow Direction | Non-reversible |
| Lap | Overlap |
| b Value | 0.4 |
| C Value | 5.6 l/s·bar |
| Switching Time (Reversal) | 11 ms |
| Max. Positive Test Pulse (0 signal) | 2000 µs |
| Max. Negative Test Pulse (1 signal) | 3600 µs |
| Exhaust-Air Function | With flow control option |
| Operating Medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Pilot Medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Lubrication Note | Lubricated operation possible (once lubricated, always required) |
| Media Temperature | -10 °C to 60 °C |
| Ambient Temperature | -10 °C to 60 °C |
| Pneumatic Connection – Ports 1, 2, 3, 4, 5 | G1/4 |
| Pilot Air Port 12, 14 | M5 |
| Pilot Exhaust Port 82, 84 | M5 |
| Breather Connection | Not ducted |
| Degree of Protection | Per coil/plug socket selected |
| Mounting Options | On manifold rail / With through-hole |
| Mounting Position | Optional (any orientation) |
| Housing Material | Die-cast aluminium, painted |
| Seal Material | HNBR / NBR |
| Piston Spool Material | Wrought aluminium alloy |
| Screw Material | Galvanised steel |
| Product Weight | 322 g |
| Approvals | c UL us – Recognized (OL) |
| Maritime Classification | DNVGL-TAA000011J (see certificate) |
| Corrosion Resistance Class (CRC) | 2 – Moderate corrosion stress |
| Vibration Resistance | Severity level 2 per FN 942017-4 / EN 60068-2-6 |
| Shock Resistance | Severity level 2 per FN 942017-5 / EN 60068-2-27 |
| LABS (PWIS) Conformity | VDMA 24364-B1/B2-L |
| Cleanroom Suitability | Class 6 per ISO 14644-1 |
| RoHS Compliance | Yes |
Common Applications
- Textile machinery pneumatic control — loom actuators, spinning frame automation
- CNC machine tool automation — tool changers, clamp/unclamp circuits
- Packaging line actuator control — carton sealing, filling station sequencing
- Plastic injection moulding — core pull, ejector control
- Automotive component assembly lines — press and fixture actuation
- Food and beverage processing — conveyor diverters, valve island integration
Why Buy from Murali Pneumatics?
- Authorized Festo Channel Partner in Coimbatore since 1991
- 100% genuine products with full Festo warranty and traceability
- Ready stock of popular VUVS models and accessories at our Mill Road store
- Expert technical support for valve selection and system design — call +91 98422 47546
Compatible Accessories
This valve is supplied without solenoid coil or plug socket. Order the following accessories separately based on your system requirements:- Solenoid coils — available in 24V DC, 110V AC, 230V AC (Festo armature tube interface)
- Plug sockets / cable connectors — MSSD-EB (basic), KMEB-1-24-2.5-LED (with cable and LED indicator)
- Push-in fittings (G1/4) — QS-G1/4-8, QSL-G1/4-8 (L-fitting), QS-G1/4-8-I (internal hex)
- Pneumatic tubing — PUN-H-8×1.25 (available in blue, black, natural, translucent blue)
- Silencers — U-1/4 for exhaust ports
- Manifold blocks — VABM-B10-25E series (2 to 10 stations, G1/2 supply)
- Pilot exhaust fittings — M5 fittings for ports 82/84 if external pilot exhaust is needed
