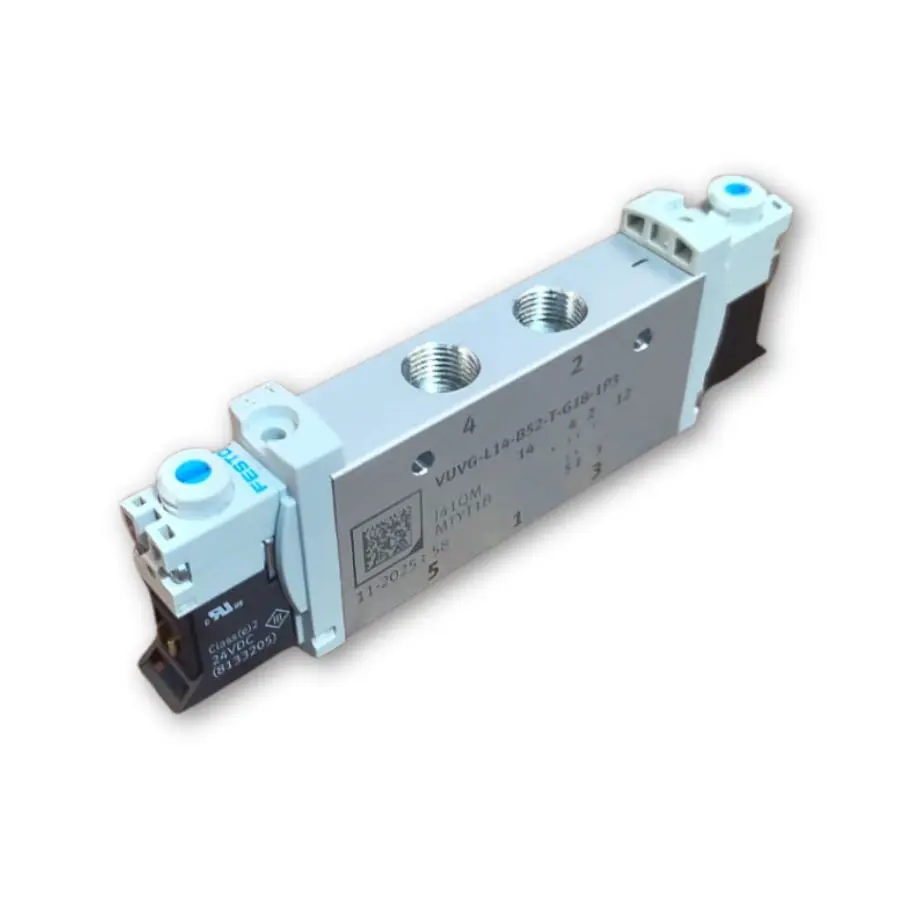

Festo VUVG-L14-B52-T-G18-1P3 – 5/2 Valve | 700 l/min | Murali Pneumatics Coimbatore
The Festo VUVG-L14-B52-T-G18-1P3 is a compact 5/2 bistable solenoid valve designed for precise directional control in pneumatic systems. With a flow rate up to 780 l/min and G1/8 ports, it’s ideal for fast-response automation in packaging, food, and cleanroom environments.
This valve operates on 24V DC and features pilot-controlled actuation with low power consumption.
⚠️ Supplied without plug socket — must be ordered separately for IP65 protection.
Festo Part Number: 566500
Available with Murali Pneumatics, your authorized Festo dealer in Coimbatore.
Product Description
Product Overview
The Festo VUVG-L14-B52-T-G18-1P3 is part of the VUVG series of compact solenoid valves, engineered for high performance in space-constrained pneumatic systems. Known for its reliability and fast switching response, this valve is widely used in packaging lines, food processing automation, and cleanroom applications. With a bistable 5/2 function and efficient pilot-controlled operation, it ensures stable switching even under fluctuating pressure conditions, making it a dependable choice for industrial automation setups in Coimbatore and beyond.Key Features
- 5/2 bistable valve function — Maintains position without continuous power, improving energy efficiency
- Flow rate up to 780 l/min — Supports fast actuator movement and high cycle rates
- Compact 14 mm valve size — Ideal for dense manifold or panel installations
- 24V DC low power coil — Reduced energy consumption with dual-phase current control
- Pilot-controlled operation — Reliable switching even at lower pressures
- Fast switching time (8 ms) — Enables high-speed automation processes
- Soft sealing principle — Ensures leak-tight performance and longer service life
- Detenting and non-detenting manual override — Flexible maintenance and testing options
- Cleanroom Class 5 compliant — Suitable for sensitive environments like electronics and pharma
- Corrosion resistance class 2 — Handles moderate industrial environments
Technical Specifications
| Parameter | Value |
|---|---|
| Festo Part Number | 566500 |
| Product Type | 5/2 Bistable Solenoid Valve |
| Actuation Type | Electrical |
| Valve Size | 14 mm |
| Nominal Flow Rate | 700 – 780 l/min |
| Port Size | G1/8 |
| Operating Pressure | 1.5 – 8 bar (0.15 – 0.8 MPa) |
| Design | Piston gate valve |
| Sealing Principle | Soft |
| Manual Override | Detenting / Non-detenting / Covered |
| Piloting Type | Pilot-controlled |
| Pilot Pressure | 1.5 – 8 bar (0.15 – 0.8 MPa) |
| Switching Time | 8 ms |
| Duty Cycle | 100% |
| Operating Voltage | 24V DC |
| Power Consumption | 1.0 W (low-current phase: 0.3 W) |
| Electrical Connection | Via electrical sub-base |
| Operating Medium | Compressed air (ISO 8573-1:2010 [7:4:4]) |
| Temperature Range | -5°C to 60°C |
| Degree of Protection | IP40 / IP65 (with plug socket) |
| Mounting Type | Terminal strip / Through-hole |
| Housing Material | Wrought aluminum alloy |
| Seal Material | HNBR, NBR |
| Weight | 89 g |
| Certifications | CE, UL, RCM, UKCA, RoHS |
| Cleanroom Class | ISO Class 5 |
| Corrosion Resistance | CRC 2 |
| LABS Compliance | VDMA24364-B1/B2-L |
Common Applications
- Packaging machines – carton handling, filling, sealing operations
- Food processing automation – hygienic pneumatic actuation
- Textile machinery – pneumatic controls in spinning and weaving systems
- CNC and machine tools – actuator control and clamping systems
- Pharmaceutical and cleanroom setups – contamination-sensitive operations
- Plastic and injection moulding automation
Why Buy from Murali Pneumatics?
- Authorized FESTO Channel Partner in Coimbatore since 1991
- 100% genuine products with full Festo warranty
- Ready stock of fast-moving models
- Expert technical support – call +91 98422 47546
Compatible Accessories
- Festo plug sockets (for IP65 protection)
- Solenoid valve manifolds
- Pneumatic tubing and push-in fittings
- Silencers for exhaust ports
- Air preparation units (FRL)
