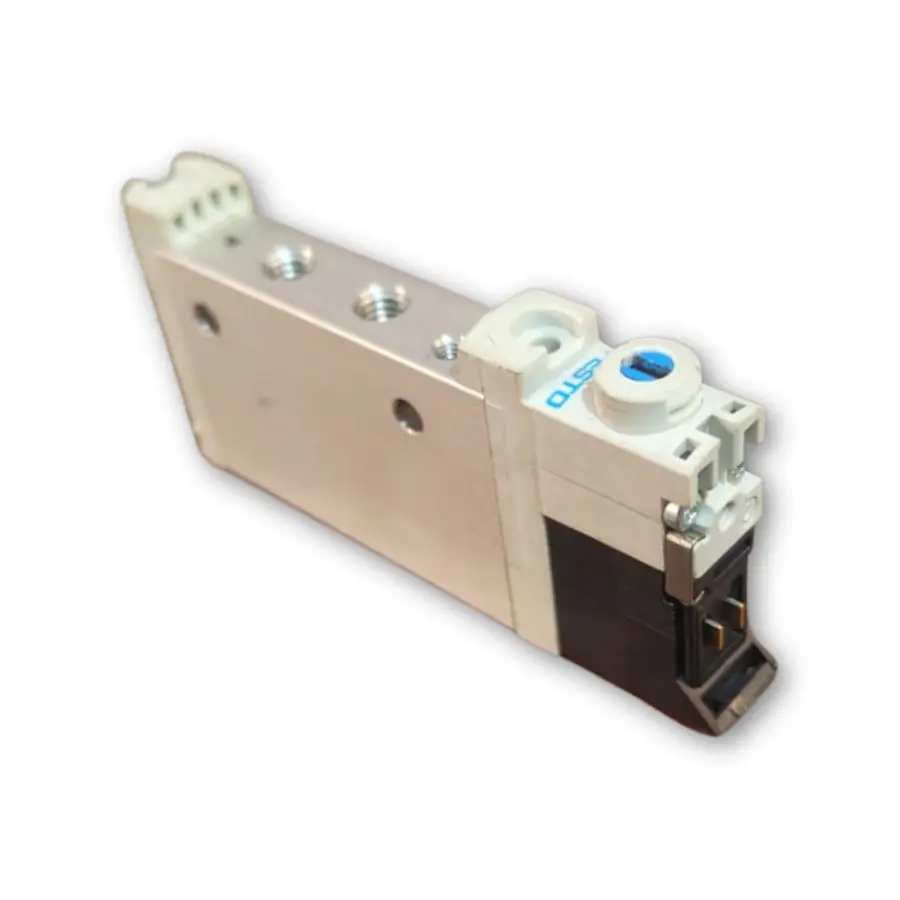

Festo VUVG-L10-M52-RT-M5-1R8L – 5/2 Monostable Solenoid Valve | 220 l/min | Murali Pneumatics Coimbatore
The Festo VUVG-L10-M52-RT-M5-1R8L is a compact 5/2-way monostable solenoid valve from the VUVG series, designed for manifold-rail or through-hole mounting in space-constrained pneumatic control panels. With a 10 mm valve size, 220 l/min nominal flow rate, and M5 port connections, it delivers reliable directional control for light-duty actuators and compact cylinder circuits. Electrically actuated at 24V DC with mechanical spring return, it suits high-cycle automation in textile, packaging, and electronics assembly applications. IP65 protection and cleanroom suitability to ISO 14644-1 Class 5 make it a versatile choice across controlled and industrial environments. Festo Part Number: 572634.
Note: This valve is sold as a base unit. The plug socket (M8×1, 3-pin, A-encoded) must be ordered separately. Coil data is integrated — no separate coil is required for 24V DC operation.
Available with Murali Pneumatics, your authorized Festo dealer in Coimbatore.
Product Description
Festo VUVG-L10-M52-RT-M5-1R8L – Compact 5/2 Monostable Solenoid Valve, 10 mm Series
The VUVG-L10-M52-RT-M5-1R8L belongs to Festo's VUVG valve series — a platform engineered specifically for compact manifold assemblies where high flow, low weight, and installation flexibility are equally important. At just 45 g with M5 pneumatic connections on all five ports, this 5/2-way monostable valve is well suited to the dense, multi-valve stations common in textile machinery, assembly automation, and electronics production lines in and around Coimbatore. Its 24V DC coil operates at 100% duty cycle, meaning it can stay energised continuously without thermal de-rating.Key Features
- 5/2-way monostable function — controls double-acting cylinders with spring-return to a safe rest position on power loss, essential for fail-safe machine designs.
- 220 l/min nominal flow rate — high flow for a 10 mm valve; drives small-to-medium bore cylinders at competitive cycle speeds without pressure drop issues.
- M5 ports on all five connections — standardised, push-in compatible port thread for direct tubing or inline fitting connections with no reducer adapters needed.
- 24V DC, 1.0 W coil at 100% duty cycle — low power draw with no need for holding current reduction circuits; simplifies PLC output card selection.
- Piston gate valve design with soft sealing — low hysteresis, consistent switching, and long service life even with moderate contamination in the compressed air supply.
- IP65 protection (with plug socket fitted) — suitable for environments with coolant mist, dust, or occasional washdown without additional enclosure costs.
- Cleanroom Class 5 (ISO 14644-1) and LABS/PWIS conformity — approved for use in paint shops, pharma lines, and semiconductor assembly without risk of surface contamination.
- Both detenting and non-detenting manual override options included — maintenance and commissioning teams can manually shift and hold the valve spool without energising the coil.
- Pilot actuated with internal pilot air, M5 supply — no separate pilot supply line required; simplifies manifold plumbing.
- Corrosion Resistance Class 2 (CRC 2) — rated for moderate corrosion stress, suitable for most industrial environments without special surface treatment.
Technical Specifications
| Parameter | Value |
|---|---|
| Festo Part Number | 572634 |
| Model Number | VUVG-L10-M52-RT-M5-1R8L |
| Product Type | Solenoid valve, manifold / through-hole mount |
| Valve Function | 5/2-way, monostable |
| Type of Actuation | Electric (solenoid) |
| Valve Size | 10 mm |
| Nominal Size | 3.2 mm |
| Standard Nominal Flow Rate | 220 l/min (to DIN 1343) |
| Pneumatic Connections (Ports 1–5) | M5 (all five ports) |
| Operating Pressure | 2.5 bar … 8 bar (0.25 MPa … 0.8 MPa) |
| Pilot Pressure Range | 2.5 bar … 8 bar (0.25 MPa … 0.8 MPa) |
| Type of Piloting | Pilot actuated — internal pilot air supply |
| Design | Piston gate valve |
| Sealing Principle | Soft seal |
| Type of Reset | Mechanical spring / Pneumatic spring |
| Manual Override | Detenting and non-detenting (covered) |
| Exhaust-Air Function | With flow control option |
| Overlap | Lap (symbol 00992233) |
| Suitability for Vacuum | No |
| Operating Voltage | 24V DC |
| Characteristic Coil Data | 24V DC: 1.0 W |
| Permissible Voltage Fluctuation | ±10% |
| Duty Cycle | 100% |
| Switching Time ON | 8 ms |
| Switching Time OFF | 17 ms |
| Max. Positive Test Pulse (0 signal) | 700 µs |
| Max. Negative Test Pulse (1 signal) | 900 µs |
| Electrical Connection | 3-pin, M8×1 A-encoded (EN 61076-2-104) |
| Plug Socket | Not included — order separately |
| Mounting Type | On manifold rail / Through-hole mounting |
| Mounting Position | Optional (any orientation) |
| Operating Medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on Operating Medium | Lubricated operation possible (once lubricated, must remain lubricated) |
| Media Temperature Range | -5 °C … 60 °C |
| Ambient Temperature Range | -5 °C … 60 °C |
| Restrictions (Environmental/Media) | -5 °C … 50 °C (without holding current reduction) |
| Degree of Protection | IP65 (with plug socket) |
| Housing Material | Wrought aluminium alloy |
| Seal Material | HNBR / NBR |
| Corrosion Resistance Class (CRC) | 2 — Moderate corrosion stress |
| LABS (PWIS) Conformity | VDMA 24364-B1/B2-L |
| Cleanroom Suitability | Class 5 per ISO 14644-1 (measured per ISO 14644-14) |
| Vibration Resistance | Transport severity level 2 per FN 942017-4 and EN 60068-2-6 |
| Shock Resistance | Shock severity level 2 per FN 942017-5 and EN 60068-2-27 |
| Product Weight | 45 g |
| RoHS Compliance | Yes — compliant per EU and UK RoHS Directives |
| Approvals / Certifications | RCM, c UL us (Recognized OL), CE (EMC + LVD), UKCA |
Common Applications
- Textile machinery in Coimbatore and Tiruppur — valve bank control for yarn tensioner actuators, warp stop motion cylinders, and card flat positioning in ring frames and open-end machines.
- Electronics and PCB assembly lines — the IP65 rating and cleanroom Class 5 approval suit pick-and-place pneumatic grippers, board handling clamps, and test jig actuators.
- Packaging and carton-forming machines — fast switching (8 ms ON) supports high-speed carton folding and sealing actuators running 40–60 cycles/min.
- Plastic injection moulding — manifold-mounted VUVG banks control mould core pulls, ejector cylinders, and gate valve actuators on multi-cavity tooling.
- Pharmaceutical blister and strip packaging — LABS conformity and cleanroom rating make this suitable for blister press actuators and foil tensioning systems.
- Automotive component assembly — reliable spring return ensures safe cylinder retraction during E-stop events on welding fixtures and press-fit stations.
Why Buy from Murali Pneumatics?
- Authorized Festo Channel Partner since 1991 — over three decades supplying genuine Festo components to Coimbatore's textile, engineering, and manufacturing industries.
- 100% genuine products with full Festo warranty — no grey market or counterfeit risk; every unit comes through Festo India's official distribution chain.
- Ready stock of popular VUVG models — walk in or WhatsApp for same-day availability confirmation on common variants at our Mill Road store.
- Expert application support — our team can help you select the right manifold rail, plug sockets, and tubing to complete your valve station. Call or WhatsApp +91 98422 47546.
Compatible Accessories
- Plug sockets (M8×1, 3-pin, A-encoded) — required to make electrical connection; choose straight or angled versions (e.g., Festo MSSD-A series).
- Manifold rail (VUVG-10 series) — for multi-valve assemblies; 2 to 10 station rails available with common supply and exhaust galleries.
- M5 push-in fittings (QS-M5-4 / QS-M5-6) — for 4 mm or 6 mm OD tubing; connect directly to all five M5 ports.
- Polyurethane or nylon tubing (4 mm or 6 mm OD) — sized to match M5 port flow capacity and cylinder port size.
- Inline silencers (U-series, M5 thread) — for exhaust ports 3 and 5 to reduce noise and control exhaust back-pressure on high-cycle applications.
- Flow control valves (GRLA-M5 / VFOE-M5) — for meter-out speed control on connected cylinder ports.
- Proximity switches / valve position sensors — VUVG-series accessories for spool position feedback where required by safety circuits.
