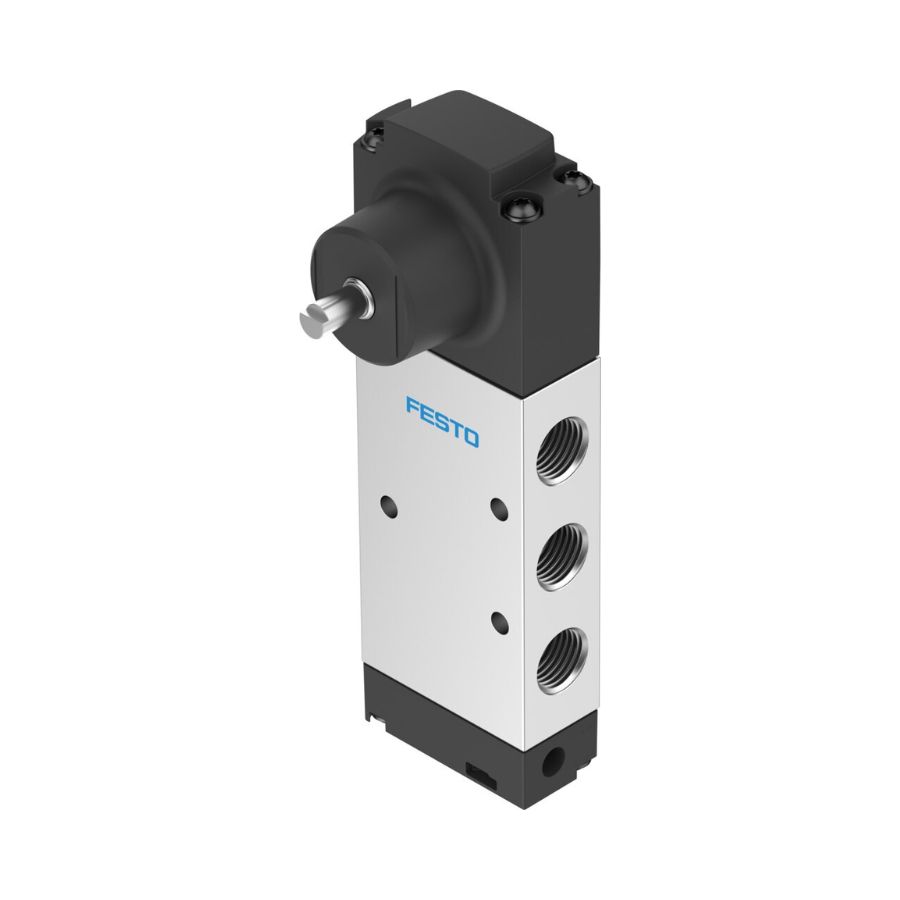

Festo VMEF-VR-M52-M-G14 – 5/2 Mechanical Swivel Lever Valve | G1/4 | Murali Pneumatics Coimbatore
The Festo VMEF-VR-M52-M-G14 is a mechanically actuated 5/2-way swivel lever pneumatic valve designed for reliable directional control in compressed air systems.
With a nominal flow rate of 1200 l/min, direct mechanical operation, and durable anodized aluminium construction, it is suitable for industrial automation environments requiring robust manual or cam-actuated valve switching.
Commonly used in packaging machinery, textile automation, machine tools, and process equipment.
Festo Part Number: 8048974
Available with Murali Pneumatics, your authorized Festo dealer in Coimbatore.
Specifications
| Brand | Desto |
| Series | VMEF |
| Festo Part Number | 8048974 |
| Product Type | Swivel Lever Valve |
| Valve Function | 5/2-Way |
| Actuation Type | Mechanical |
| Valve Size | 20 mm |
| Nominal Flow Rate | 1200 l/min |
| Port Size | G1/4 |
| Nominal Size | 7 mm |
| Operating Pressure | -0.95 to 10 bar |
| Sealing Principle | Soft |
| Manual Override | Mechanical Lever |
| Piloting Type | Direct |
| Mounting Type | Through-Hole |
| Housing Material | Anodised Aluminium Alloy |
| Seal Material | NBR |
| Media Temperature Range | -10°C to 60°C |
| Weight | 238 g |
| Corrosion Resistance | CRC 1 |
| LABS/PWIS | VDMA24364-B1/B2-L |
| RoHS Compliant | Yes |
Product Description
Festo VMEF-VR-M52-M-G14 Swivel Lever Valve
The Festo VMEF-VR-M52-M-G14 is a mechanically actuated 5/2-way directional control valve from the VMEF series. Designed for dependable pneumatic switching, this valve combines compact construction, high flow capacity, and direct mechanical operation for applications where electrical actuation is not required.
The VMEF series is widely used in industrial automation systems due to its robust piston gate valve design, reliable sealing performance, and suitability for demanding machine environments. Its swivel lever mechanism allows precise actuation through cams, levers, or mechanical movement within machinery.
Key Features
- 5/2-way valve function — controls double-acting pneumatic actuators efficiently.
- Mechanical swivel lever actuation — ideal where electrical control is unnecessary or unavailable.
- 1200 l/min nominal flow rate — supports fast actuator response.
- Direct piloting design — immediate switching without pilot air dependency.
- Piston gate valve construction — durable and reliable operation.
- Mechanical spring return — automatic reset after actuation.
- G1/4 pneumatic ports — compatible with standard industrial pneumatic systems.
- Soft sealing principle — minimizes leakage and improves sealing performance.
- Any mounting position — flexible installation options.
- Reversible flow direction — simplifies machine design and piping layouts.
Technical Specifications
| Festo Part Number | 8048974 |
| Product Type | Swivel Lever Valve |
| Series | VMEF |
| Valve Function | 5/2-way |
| Actuation Type | Mechanical |
| Construction Width | 20 mm |
| Nominal Flow Rate | 1200 l/min |
| Nominal Size | 7 mm |
| Operating Pressure | -0.95 bar to 10 bar (-0.095 MPa to 1 MPa) |
| Design | Piston Gate Valve |
| Actuator Type | Quarter Turn Actuator |
| Type of Reset | Mechanical Spring |
| Sealing Principle | Soft |
| Type of Piloting | Direct |
| Flow Direction | Reversible |
| Overlap | Overlap |
| Maximum Actuating Speed | 1 m/s |
| Maximum Switching Frequency | 2.5 Hz |
| Cam Angle | 45° |
| Operating Medium | Compressed Air to ISO 8573-1:2010 [7:-:-] |
| Lubrication | Lubricated operation possible |
| Media Temperature Range | -10°C to 60°C |
| Ambient Temperature Range | -10°C to 60°C |
| Actuating Torque | 1.2 Nm |
| Mounting Position | Any |
| Mounting Type | Through-hole Mounting |
| Pneumatic Connection Port 1 | G1/4 |
| Pneumatic Connection Port 2 | G1/4 |
| Pneumatic Connection Port 3 | G1/4 |
| Pneumatic Connection Port 4 | G1/4 |
| Pneumatic Connection Port 5 | G1/4 |
| Corrosion Resistance Class | CRC 1 |
| LABS/PWIS Conformity | VDMA24364-B1/B2-L |
| Material Cover | Reinforced PA |
| Material Housing | Anodised Wrought Aluminium Alloy |
| Material Seals | NBR |
| Weight | 238 g |
| RoHS Compliance | Yes |
Common Applications
- Food packaging machinery and carton handling systems.
- Textile spinning frame and winding machine pneumatic controls.
- CNC machine tool clamping and indexing systems.
- Plastic injection moulding machine auxiliary automation.
- Printing and converting equipment pneumatic sequencing.
- General industrial automation requiring mechanical valve actuation.
