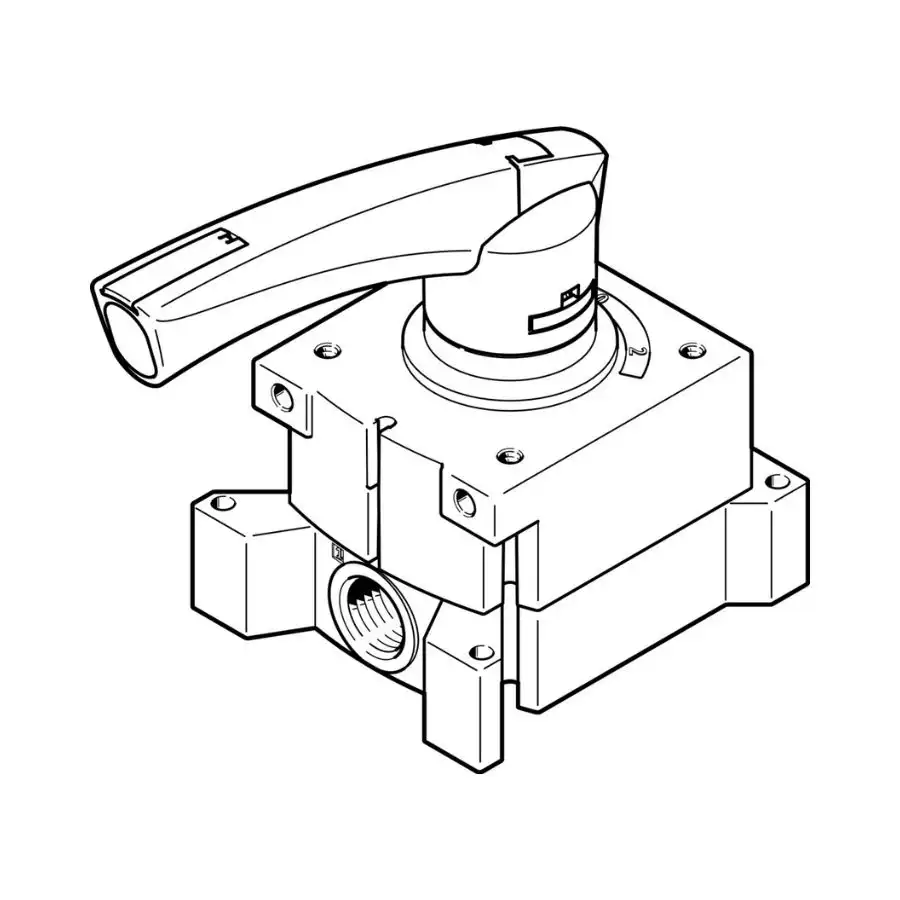

Festo VHER-P-H-B43C-M5 – 4/3 Hand Lever Valve | 170 l/min | Murali Pneumatics Coimbatore
The Festo VHER-P-H-B43C-M5 is a manually operated 4/3-way hand lever valve designed for reliable pneumatic control in industrial automation systems.
Featuring a compact 37 mm construction width, 170 l/min nominal flow rate, and M5 pneumatic connections, this rotary switching valve provides precise manual control with a closed center position.
Suitable for food processing equipment, packaging machinery, machine tool auxiliaries, and process automation applications.
Festo Part Number: 3410679
Accessories such as actuator locks and switching position indicators are available separately and are not included with the base valve.
Product Description
The Festo VHER-P-H-B43C-M5 hand lever valve is a compact manually operated directional control valve designed for dependable pneumatic switching in industrial automation systems. As part of the VHER series, this valve combines robust construction, direct actuation, and precise flow control in a compact package suitable for demanding production environments.
Its 4/3-way closed-center configuration makes it particularly useful where operators require manual control of pneumatic actuators while maintaining a neutral blocked position. The valve is commonly used in food processing equipment, packaging machinery, process automation systems, and machine tool applications.
Key Features
- 4/3-way closed-center valve function — blocks ports in the neutral position for controlled operation.
- Manual hand lever actuation — simple and reliable operator-controlled switching.
- 170 l/min nominal flow rate — suitable for compact pneumatic circuits.
- Rotary switching valve design — durable operation with positive switching action.
- M5 pneumatic ports — easy integration into small pneumatic systems.
- Directly actuated valve — no pilot pressure required for operation.
- Exhaust air can be throttled — supports controlled exhaust flow management.
- ATEX Zone 2 and Zone 22 approved — suitable for selected hazardous environments.
- Wide temperature range from -20°C to +80°C — reliable operation in varied conditions.
- LABS/PWIS compliant — suitable for sensitive manufacturing environments.
Technical Specifications
| Festo Part Number | 3410679 |
| Product Type | Hand Lever Valve |
| Series | VHER |
| Valve Function | 4/3-way, Closed Centre |
| Type of Actuation | Manual |
| Construction Width | 37 mm |
| Nominal Flow Rate | 170 l/min |
| Nominal Size | 4 mm |
| Operating Pressure | 0 to 10 bar |
| Pressure Note | In dual-pressure operation, pressure at port 1 must be higher than port 3 |
| Design | Rotary Switching Valve |
| Sealing Principle | Hard |
| Type of Piloting | Direct |
| Flow Direction | Non-reversible |
| Exhaust-Air Function | Can be throttled |
| Actuator Lock | Can be closed with accessories |
| Switching Position Indicator | With accessories |
| Overlap | Yes |
| Operating Medium | Compressed Air to ISO 8573-1:2010 [7:4:4] |
| Lubrication | Lubricated operation possible |
| Media Temperature | -20°C to +80°C |
| Ambient Temperature | -20°C to +80°C |
| Actuating Torque | 0.5 Nm |
| Pneumatic Connection Port 1 | M5 |
| Pneumatic Connection Port 2 | M5 |
| Pneumatic Connection Port 3 | M5 |
| Pneumatic Connection Port 4 | M5 |
| Mounting Type | Through-hole Mounting |
| Explosion Protection | ATEX Zone 2, ATEX Zone 22 |
| Corrosion Resistance Class | CRC 2 - Moderate Corrosion Stress |
| LABS/PWIS Conformity | VDMA24364-B1/B2-L |
| Housing Material | PA |
| Seal Material | NBR |
| Lever Material | Process Automation Grade Material |
| Weight | 95 g |
| RoHS Compliance | Yes |
Common Applications
- Packaging machine operator control stations.
- Food processing machinery pneumatic control circuits.
- Textile spinning and winding machine auxiliary pneumatic functions.
- CNC machine tool pneumatic fixture control.
- Plastic injection moulding machine pneumatic subsystems.
- Process automation panels requiring manual pneumatic actuation.
Why Buy from Murali Pneumatics?
- Authorized FESTO Channel Partner in Coimbatore since 1991.
- 100% genuine FESTO products with manufacturer warranty support.
- Ready assistance for valve selection, installation, and spare parts.
- Expert technical support available at +91 98422 47546.
Compatible Accessories
- Festo pneumatic tubing.
- Festo M5 push-in fittings.
- Actuator locking accessories.
- Switching position indicator accessories.
- Flow control valves.
- Silencers and exhaust throttling accessories.
- Pneumatic manifolds and mounting hardware.
