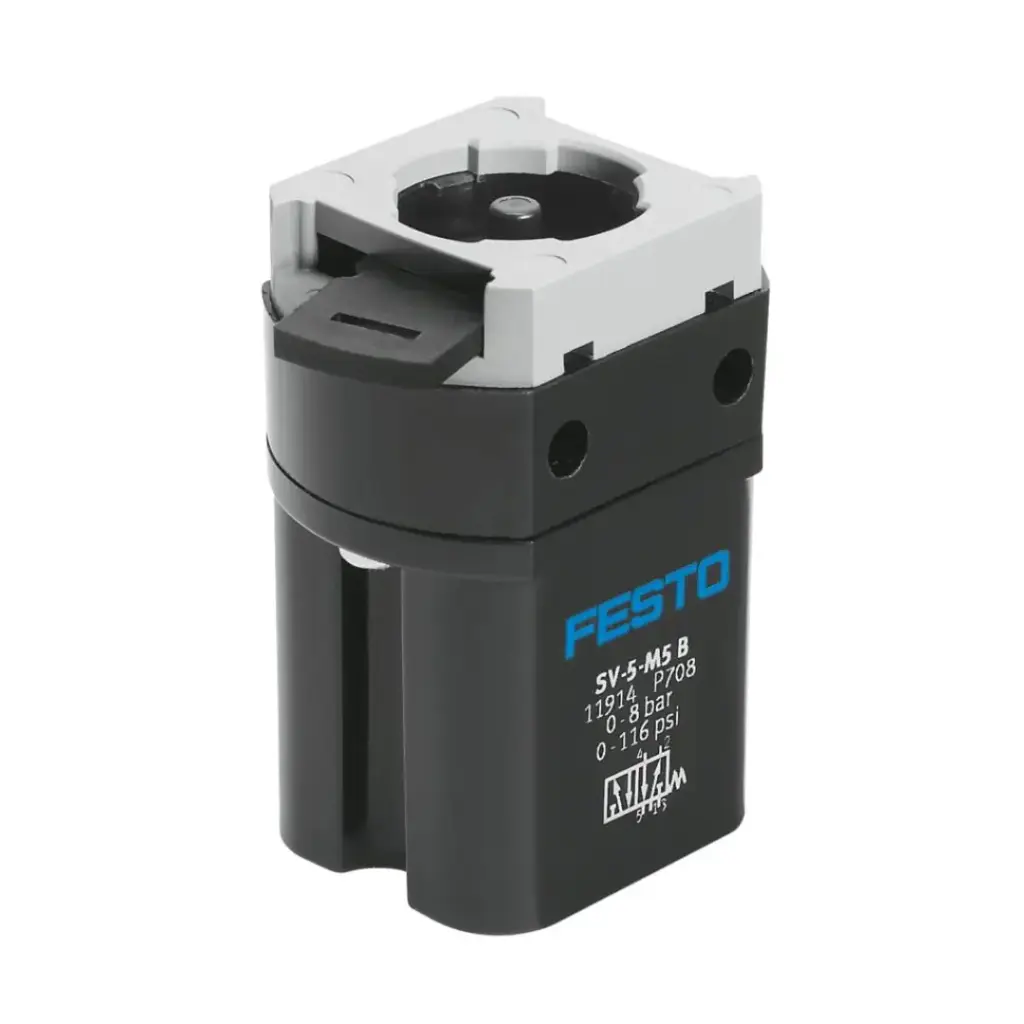

Festo SV-5-M5-B – 5/2 Front Panel Valve | 95 l/min | Murali Pneumatics Coimbatore
The Festo SV-5-M5-B is a manually actuated 5/2-way front panel pneumatic valve designed for reliable directional control of compressed air circuits.
With a nominal flow rate of 95 l/min, direct actuation design, and spring return poppet valve construction, it provides dependable switching performance in industrial automation systems.
Suitable for machine control panels, pneumatic operator stations, testing rigs, and compact automation equipment.
Festo Part Number: 11914
Available with Murali Pneumatics, your authorized Festo dealer in Coimbatore.
Product Description
Festo SV-5-M5-B Front Panel Valve
The Festo SV-5-M5-B is a manually operated 5/2-way front panel valve designed for dependable pneumatic directional control in industrial machinery and automation systems. Part of Festo's SV series, this valve combines compact dimensions, direct actuation, and durable construction for applications where simple manual operation is preferred. Its spring-return poppet valve design offers reliable switching performance with low maintenance requirements. The valve is suitable for machine panels, testing stations, maintenance systems, and industrial control applications where operators require direct pneumatic control.Key Features
- 5/2-way valve function — controls double-acting pneumatic actuators with manual operation.
- Manual actuation — simple and reliable operator-controlled switching.
- 95 l/min nominal flow rate — suitable for compact pneumatic circuits.
- Direct piloting design — fast and straightforward valve operation.
- Poppet valve with spring return — dependable switching and long service life.
- Soft sealing principle — improved sealing performance and reduced leakage.
- M5 pneumatic connection — ideal for compact machine installations.
- Any mounting position — flexible installation options.
- ATEX certified for Zones 1, 2, 21 and 22 — suitable for hazardous environments.
- LABS (PWIS) compliant — suitable for applications requiring paint-wetting impairment substance conformity.
Technical Specifications
| Festo Part Number | 11914 |
| Model | SV-5-M5-B |
| Product Type | Front Panel Valve |
| Valve Function | 5/2-way |
| Actuation Type | Manual |
| Nominal Flow Rate | 95 l/min |
| Operating Pressure | 0 to 8 bar (0 to 0.8 MPa) |
| Design | Poppet Valve with Spring Return |
| Type of Reset | Mechanical Spring |
| Nominal Size | 2.3 mm |
| Sealing Principle | Soft |
| Mounting Position | Any |
| Type of Piloting | Direct |
| Overlap | Overlap |
| Operating Medium | Compressed Air to ISO 8573-1:2010 [-:-:-] |
| Ambient Temperature Range | -10°C to +60°C |
| Actuating Force | 17 N |
| Pneumatic Connection Port 1 | M5 |
| Mounting Type | Through-hole Mounting |
| Housing Material | Polymer, Brass |
| Seal Material | NBR |
| Product Weight | 53 g |
| Explosion Protection | ATEX Zones 1, 2, 21, 22 |
| LABS (PWIS) Conformity | VDMA24364-B1/B2-L |
Common Applications
- Operator control panels in textile machinery around Coimbatore.
- Pneumatic testing and inspection fixtures.
- Packaging machine manual control stations.
- CNC machine auxiliary pneumatic circuits.
- Plastic injection moulding machine service panels.
- Industrial automation training and maintenance systems.
Why Buy from Murali Pneumatics?
- Authorized FESTO Channel Partner in Coimbatore since 1991.
- 100% genuine Festo products with manufacturer warranty.
- Ready availability of popular Festo pneumatic components.
- Expert technical support and product selection assistance at +91 98422 47546.
Compatible Accessories
- Festo M5 pneumatic fittings.
- Festo polyurethane pneumatic tubing.
- Flow control valves.
- Silencers and exhaust accessories.
- Panel mounting hardware.
- Pneumatic manifolds and distribution blocks.
- Air preparation units (FRL combinations).
