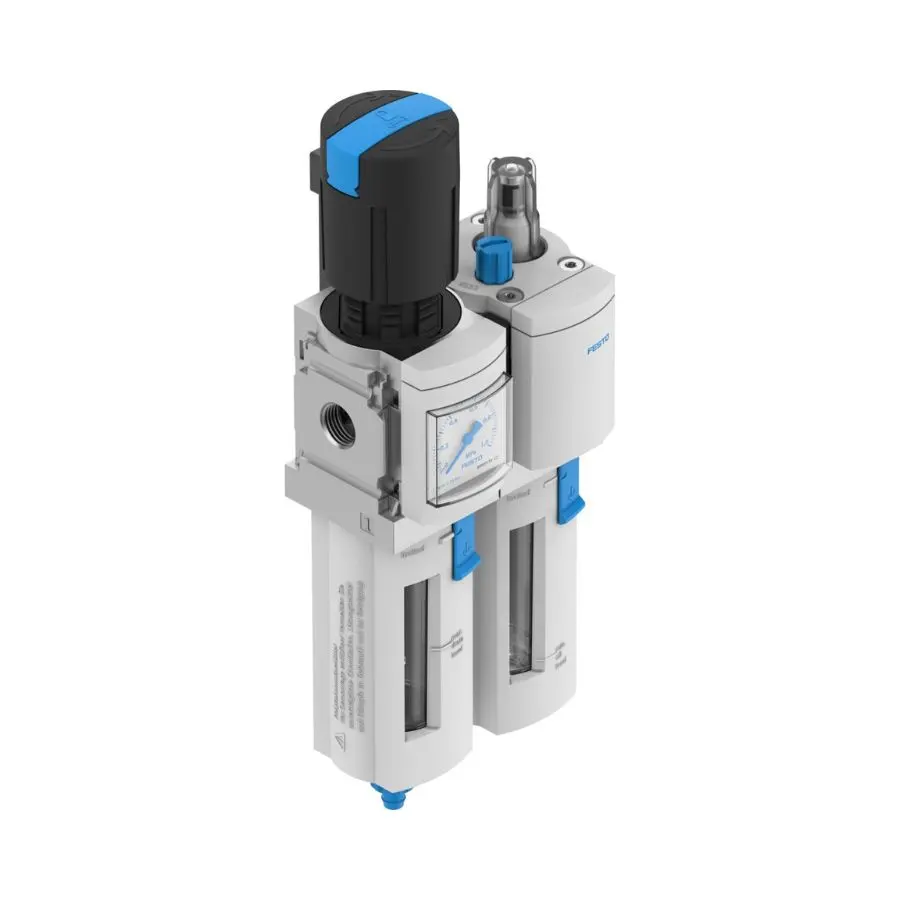

Festo MSB4-1/4:J120:M1-WP – Air Service Unit | 1400 l/min | Murali Pneumatics Coimbatore
The Festo MSB4-1/4:J120:M1-WP is a compact air service unit combining filter, regulator, and lubricator in a single assembly for clean and controlled compressed air supply. With a flow rate of 1400 l/min and G1/4 ports, it is designed for reliable performance in demanding industrial environments including food processing, packaging, and automation systems.
This unit features consistent pressure regulation with primary compensation and secondary venting, ensuring stable downstream operation. It includes a built-in pressure gauge and manual condensate drain for easy monitoring and maintenance.
Festo Part Number: 8233008
Available with Murali Pneumatics, your authorized Festo dealer in Coimbatore.
Product Description
Overview
The Festo MSB4-1/4:J120:M1-WP air service unit belongs to the MS series, known for its modular design, compact footprint, and dependable air preparation performance. This unit integrates filtration, pressure regulation, and lubrication into a single assembly, making it ideal for maintaining consistent air quality and pressure in pneumatic systems.
In industrial environments across Coimbatore, especially in packaging, textile, and process automation sectors, proper air preparation is critical to ensure equipment longevity and process stability. This MSB4 unit delivers reliable operation with high flow capacity and precise pressure control.
Key Features
- Integrated FRL unit — Combines filter, regulator, and lubricator for complete air preparation in one compact module
- High flow rate (1400 l/min) — Supports medium to high-demand pneumatic systems without pressure drop issues
- 40 µm filtration — Effectively removes contaminants to protect downstream components
- Stable pressure regulation — Maintains constant output pressure via primary compensation and secondary venting
- Manual condensate drain — Simple and reliable removal of accumulated moisture
- Rotary knob with detent — Easy and secure pressure adjustment, lockable with accessories
- Built-in pressure gauge — Real-time monitoring of output pressure
- Lubricator with 30 cm³ capacity — Ensures proper lubrication for pneumatic components when required
- Corrosion resistance class CRC 2 — Suitable for moderate industrial environments
- Compact and lightweight (480 g) — Easy integration into control panels and machine frames
Technical Specifications
| Parameter | Value |
|---|---|
| Festo Part Number | 8233008 |
| Series | MS |
| Product Type | Air Service Unit (Filter-Regulator-Lubricator) |
| Size | 4 |
| Design | Filter / Closed-loop controller / Lubricator |
| Flow Rate | 1400 l/min |
| Port Size | G1/4 (Port 1 & Port 2) |
| Operating Pressure | 1.5 to 14 bar (0.15 to 1.4 MPa) |
| Pressure Regulation Range | 1.5 to 14 bar |
| Filtration Grade | 40 µm |
| Max Condensate Volume | 19 ml |
| Max Oil Capacity | 30 cm³ |
| Actuator Lock | Rotary knob with detent |
| Mounting Position | Vertical ±5° |
| Condensate Drain | Manual rotating |
| Pressure Display | Analog pressure gauge |
| Operating Medium | Compressed air (ISO 8573-1:2010 [-:4:-]), inert gases |
| Media Temperature | -10 °C to 60 °C |
| Ambient Temperature | -10 °C to 60 °C |
| Storage Temperature | -10 °C to 60 °C |
| Air Purity Class at Output | ISO 8573-1:2010 [7:4:-] |
| Corrosion Resistance Class | CRC 2 |
| LABS Conformity | VDMA24364-B1/B2-L |
| Housing Material | Die-cast aluminium |
| Bowl Material | PC |
| Seal Material | NBR |
| Filter Material | PE |
| Product Weight | 480 g |
| Mounting Type | Via mounting bracket |
Common Applications
- Packaging machines for clean and regulated air supply
- Food processing lines requiring controlled lubrication and filtration
- Textile machinery such as spinning and weaving automation
- CNC and machine tool pneumatic systems
- Process automation in chemical and pharmaceutical industries
- Industrial plants in mining and metals with moderate corrosion exposure
Why Buy from Murali Pneumatics?
- Authorized Festo Channel Partner in Coimbatore since 1991
- 100% genuine products with full Festo warranty
- Ready stock for fast-moving MS series units
- Technical support from experienced pneumatic specialists
Compatible Accessories
- Mounting brackets for panel or machine installation
- Push-in fittings and pneumatic tubing (G1/4 compatible)
- Pressure gauges (replacement or upgrade)
- Silencers for exhaust ports
- Additional filtration or drying units
- Thread sealants and installation accessories
All accessories available from stock. Ask us to bundle your complete assembly.
