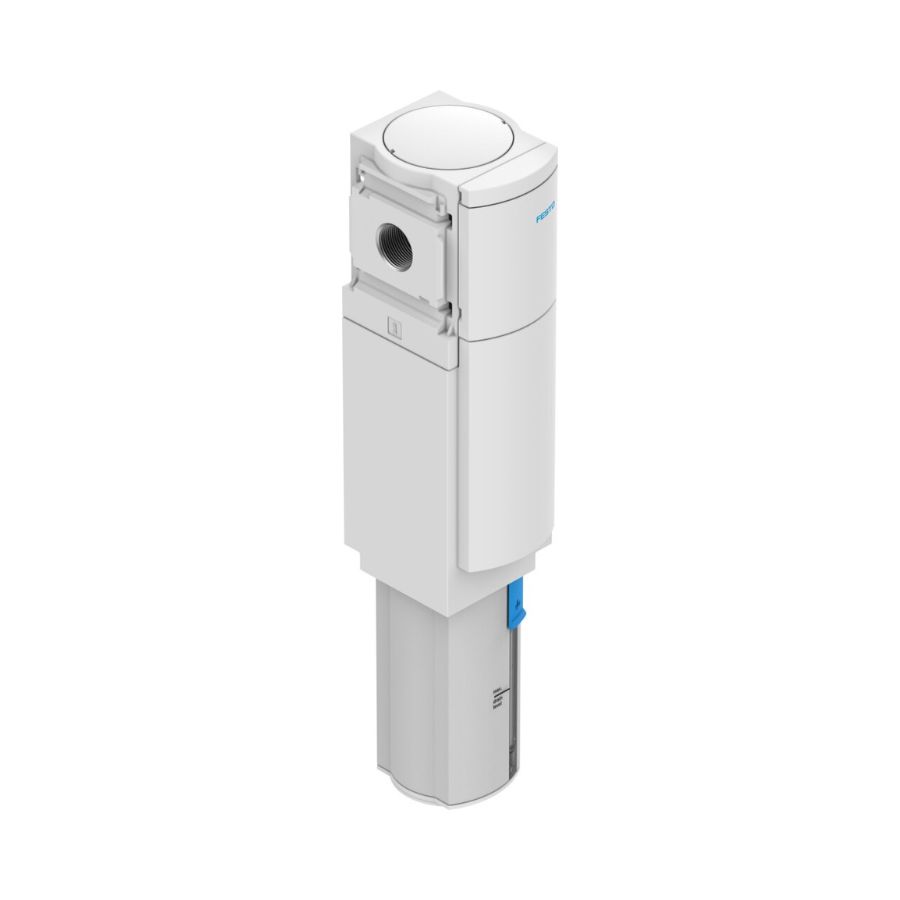

Festo MS6-LFX-1/2-U-HF Activated Carbon Filter for Clean Compressed Air

The Festo MS6-LFX-1/2-U-HF is an MS series activated carbon filter designed for compressed air preparation where very low residual oil content is required. As part of the Festo MS service unit range, it is suitable for modular air preparation assemblies used in industrial pneumatic systems. This filter is especially useful in applications where clean air quality directly affects process reliability, product quality, or pneumatic component life. With a high standard flow rate, G1/2 connections, and a robust metal bowl construction, it is a practical choice for plant engineers looking for genuine Festo air preparation components in Coimbatore.

Key Features

• Activated carbon filter design — helps reduce residual oil content in compressed air for sensitive pneumatic applications.
• MS series size 6 construction — suitable for modular Festo MS air preparation combinations.
• 2500 l/min maximum standard flow rate — supports higher air consumption lines without unnecessary restriction.
• G1/2 pneumatic connections — commonly used port size for medium-flow industrial compressed air systems.
• 0 bar to 20 bar operating pressure range — suitable for a wide range of pneumatic service line conditions.
• Compressed air output class ISO 8573-1:2010 [1:4:1] — helps achieve defined clean air quality at the outlet.
• 0.003 mg/m³ residual oil content — suitable where oil vapour reduction is important for downstream equipment or process air.
• Integrated metal bowl guard — provides stronger protection compared with exposed bowl designs.
• Die-cast aluminium housing — robust body construction for industrial use.
• RoHS-compliant materials — suitable for modern industrial procurement and compliance requirements.

Technical Specifications

Parameter	Value
Festo Part Number	552927
Model Number	MS6-LFX-1/2-U-HF
Product Category	Compressed Air Filter
Product Type	Activated Carbon Filter
Series	MS
Size	6
Design	Activated carbon filter
Mounting Position	Vertical +/-5°
Bowl Guard	Integrated as metal bowl
Symbol	00991519
Operating Pressure Range	0 bar ... 20 bar
Maximum Standard Flow Rate for Clean Air Class	2500 l/min
Operating Medium	Inert gas
Air Purity Class at Output	Compressed air according to ISO 8573-1:2010 [1:4:1]
Residual Oil Content	0.003 mg/m³
Media Temperature Range	5 °C ... 30 °C
Ambient Temperature Range	-10 °C ... 60 °C
Storage Temperature Range	-10 °C ... 60 °C
Product Weight	1500 g
Type of Mounting	With accessories
Pneumatic Connection, Port 1	G1/2
Pneumatic Connection, Port 2	G1/2
Material Filter	Activated carbon
Material Housing	Die-cast aluminium
Material Bowl	Wrought aluminium alloy
Corrosion Resistance Class	CRC 2 - Moderate corrosion stress
LABS / PWIS Conformity	VDMA24364-B1/B2-L
RoHS Compliance	RoHS-compliant

Common Applications

• Food and packaging machinery where clean compressed air is required near process equipment.
• Packaging lines using pneumatic actuators, grippers, sealing stations, and dosing mechanisms.
• LifeTech automation systems where stable and clean air preparation is important for repeatable operation.
• Textile machinery support systems in Coimbatore-area mills where pneumatic valves and actuators require clean air supply.
• Mining and metal processing pneumatic panels where robust aluminium construction and high flow capacity are useful.
• Printing, labelling, and handling systems where oil vapour reduction helps protect downstream pneumatic components.

Why Buy from Murali Pneumatics?

• Authorized Festo Channel Partner in Coimbatore since 1991.
• 100% genuine Festo products supplied with applicable Festo warranty support.
• Ready stock of popular Festo pneumatic components and air preparation products at our Coimbatore store.
• Expert technical support for filter selection, port matching, and complete air preparation assemblies — call +91 98422 47546.

Compatible Accessories

• Festo MS series mounting brackets and joining accessories for modular air preparation assemblies.
• Compatible G1/2 pneumatic fittings for inlet and outlet connection.
• Compressed air tubing suitable for the required flow and pressure rating.
• Upstream filtration units where particulate and moisture separation is required before activated carbon filtration.
• Downstream regulators, shut-off valves, and distribution blocks depending on the pneumatic circuit layout.
• Pressure gauges and service unit accessories for complete compressed air preparation panels.

All accessories available from stock. Ask us to bundle your complete assembly.
