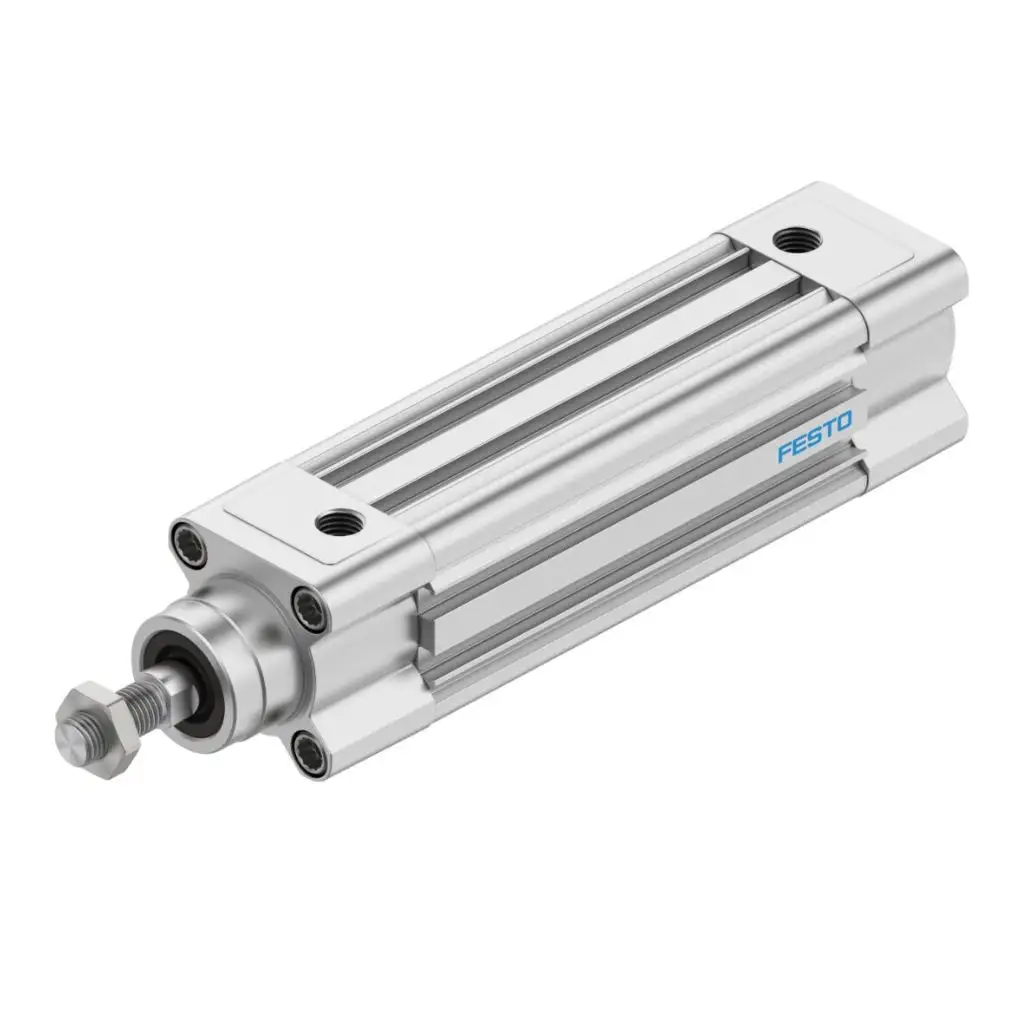

Festo DSBC-32-80-D3-PPSA-N3 – ISO Cylinder | Bore 32mm, Stroke 80mm | Murali Pneumatics Coimbatore
The Festo DSBC-32-80-D3-PPSA-N3 is a double-acting ISO 15552 profile cylinder designed for industrial automation applications requiring reliable linear motion and long service life.
This cylinder features a 32 mm bore, 80 mm stroke, and self-adjusting pneumatic end-position cushioning (PPS) for smooth operation and reduced commissioning time. Position sensing via proximity switches enables integration into modern automated machinery.
Widely used in textile machinery, packaging systems, machine tools, food processing equipment, and industrial automation systems.
Festo Part Number: 3659381
Mounting accessories, sensors, fittings, and tubing are ordered separately.
Available with Murali Pneumatics, your authorized Festo dealer in Coimbatore.
Specifications
| Brand | Festo |
| Series | DSBC |
| Festo part number | 3659381 |
| Product Type | ISO Profile Cylinder |
| Bore Size | 32 mm |
| Stroke Length | 80 mm |
| Operating Principle | Double-acting |
| Piston Rod Thread | M10x1.25 |
| Cushioning | Self-adjusting PPS |
| Operating Pressure | 0.8–12 bar |
| Port Size | G1/8 |
| Mounting Type | Female Thread / Accessories |
| Position Sensing | Proximity Switch |
| Body Material | Aluminium Alloy |
| Piston Rod Material | High-Alloy Steel |
| Seal Material | TPE-U (PU) |
| Weight | 727 g |
| Corrosion Resistance | CRC 2 |
| RoHS Compliant | Yes |
Product Description
The Festo DSBC-32-80-D3-PPSA-N3 is a premium ISO 15552 compliant profile cylinder designed for demanding industrial automation applications. Part of the proven DSBC series, this pneumatic actuator combines robust construction, precise motion control, and long operational life. The DSBC series is widely used across manufacturing industries due to its standardized dimensions, integrated position sensing capability, and self-adjusting pneumatic cushioning technology.
This double-acting cylinder features a 32 mm piston diameter and an 80 mm stroke length, making it suitable for machine automation, handling systems, packaging equipment, textile machinery, and process industry applications throughout Coimbatore and South India.
Key Features
- ISO 15552 standard design — ensures interchangeability and easy replacement.
- 32 mm bore with 80 mm stroke — suitable for medium-force linear actuation applications.
- Self-adjusting PPS cushioning — minimizes commissioning effort and reduces impact loads.
- Double-acting operation — provides controlled movement in both directions.
- Operating pressure up to 12 bar — supports demanding industrial environments.
- Integrated proximity switch sensing capability — enables automation and position monitoring.
- Profile barrel construction — provides excellent rigidity and mounting flexibility.
- Corrosion resistance class CRC 2 — suitable for moderate industrial environments.
- LABS/PWIS compliant design — suitable for paint and sensitive manufacturing applications.
- RoHS compliant materials — supports modern environmental requirements.
Technical Specifications
| Festo Part Number | 3659381 |
| Series | DSBC |
| Cylinder Type | ISO Profile Cylinder |
| Conforms to Standard | ISO 15552 |
| Mode of Operation | Double-acting |
| Stroke Length | 80 mm |
| Piston Diameter | 32 mm |
| Piston Rod Thread | M10x1.25 |
| Piston Rod End | Male Thread |
| Cushioning | Self-adjusting pneumatic cushioning (PPS) |
| Cushioning Length | 17 mm |
| Mounting Position | Any |
| Position Detection | Via proximity switch |
| Design | Piston, Piston Rod, Profile Barrel |
| Operating Pressure | 0.8 to 12 bar (0.08 to 1.2 MPa) |
| Operating Medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Lubrication | Lubricated operation possible |
| Ambient Temperature | -20°C to +80°C |
| Theoretical Force (Advance) | 483 N at 6 bar |
| Theoretical Force (Return) | 415 N at 6 bar |
| Impact Energy | 0.4 J |
| Moving Mass | 182 g |
| Product Weight | 727 g |
| Pneumatic Connection | G1/8 |
| Mounting Type | Female thread, accessories |
| Corrosion Resistance Class | CRC 2 |
| LABS Conformity | VDMA24364-B1/B2-L |
| Material Cover | Coated die-cast aluminium |
| Material Cylinder Barrel | Smooth anodised wrought aluminium alloy |
| Material Piston | Wrought aluminium alloy |
| Material Piston Rod | High-alloy steel |
| Piston Seal Material | TPE-U (PU) |
| Buffer Seal Material | TPE-U (PU) |
| Rod Wiper Material | TPE-E |
| Bearing Material | Metal polymer compound |
| Nut Material | Galvanised steel |
| Collar Screw Material | Galvanised steel |
| RoHS Compliance | Yes |
Common Applications
- Spinning frame and textile machine automation in Coimbatore textile industries
- Food packaging and filling machinery
- Plastic injection moulding auxiliary automation
- CNC machine loading and unloading systems
- Automotive component assembly lines
- Pharmaceutical and cleanroom automation equipment
