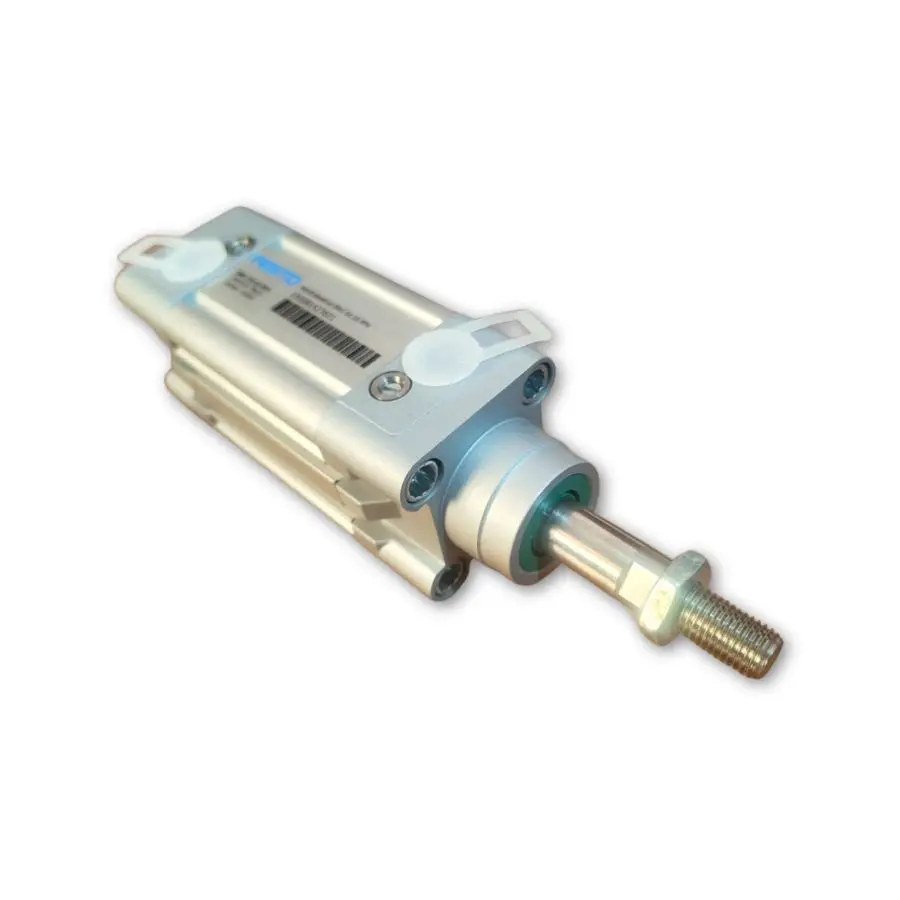

Festo DNC-32 – ISO 15552 Standard Pneumatic Cylinder, 32mm Bore

The Festo DNC series is one of the most widely deployed ISO 15552-compliant pneumatic cylinders in Indian industry — and the DNC-32 is the workhorse of the range. With a 32 mm bore, adjustable pneumatic cushioning at both ends, and stroke availability from 2 mm up to 2000 mm, this cylinder is designed to slot directly into any machine design that calls for an ISO-standard linear actuator. The profile barrel construction ensures dimensional interchangeability across brands, while Festo's manufacturing quality adds the reliability that production engineers depend on.

Key Features

• ISO 15552 Compliance — Fully interchangeable with any ISO 15552 cylinder mount, simplifying retrofits and replacements without redesigning the machine frame.
• 32 mm Bore with High Force Output — Delivers 483 N advancing and 415 N retracting at 6 bar, suitable for clamping, feeding, pressing, and positioning tasks.
• Adjustable Pneumatic Cushioning at Both Ends — Reduces end-of-stroke impact on both extension and retraction, protecting the cylinder and the driven load from shock damage.
• Wide Stroke Range: 2 mm to 2000 mm — A single part number family covers short-stroke clamping and long-travel transfer applications; specify your exact stroke at time of order.
• Wide Pressure Range: 0.6 to 12 bar — Operates reliably at low circuit pressures as well as high-force high-pressure applications without valve or regulator changes.
• Any Mounting Position — Internal thread mounting plus a full range of ISO-standard accessories (pivot pins, foot brackets, flanges, clevis) means installation in any orientation.
• Double-Acting Operation — Delivers positive force in both directions, unlike spring-return designs, giving full control over both stroke and return speed.
• LABS/PWIS Conformity (VDMA 24364-B1/B2-L) — Suitable for use in paint shops and coating environments where paint-wetting impairment substances must be avoided.
• RoHS-Compliant Construction — Materials meet EU RoHS requirements, important for export machinery and OEM customers with compliance obligations.
• Corrosion Resistance Class 2 — Rated for moderate corrosion stress; appropriate for standard factory environments, though not for direct washdown or salt-spray exposure.

Technical Specifications

Parameter	Value
Festo Part Number	163318
Model Number	DNC-32-…-PPV
Cylinder Type	ISO 15552 Standard Cylinder
Mode of Operation	Double-acting
Piston Diameter (Bore)	32 mm
Stroke Range	2 mm – 2000 mm (specify at order)
Piston Rod Thread	M10×1.25 (external thread)
Operating Pressure	0.6 bar – 12 bar (0.06 MPa – 1.2 MPa)
Theoretical Force at 6 bar – Advancing	483 N
Theoretical Force at 6 bar – Retracting	415 N
Cushioning	Pneumatic, adjustable at both ends
Cushioning Length	20 mm
Impact Energy (End Positions)	0.1 J
Pneumatic Connection	G1/8
Piston Rod End	External thread
Structural Design	Piston / Piston rod / Profile barrel
Mounting Position	Any
Type of Mounting	Internal thread; with accessories
Position Sensing	None (sensor slots available with accessory)
Operating Medium	Compressed air per ISO 8573-1:2010 [7:4:4]
Oil Lubrication	Possible (required for continued use if started)
Ambient Temperature Range	−20 °C to +80 °C
Moving Mass at 0 mm Stroke	162 g
Additional Moving Mass per 10 mm Stroke	9 g
Basic Weight at 0 mm Stroke	517 g
Additional Weight per 10 mm Stroke	30 g
Cover Material	Die-cast aluminium, coated
Cylinder Barrel Material	Wrought aluminium alloy, smooth anodised
Piston Rod Material	High-alloy steel
Seal Material	TPE-U (Polyurethane)
Conforms to Standard	ISO 15552
Corrosion Resistance Class (CRC)	2 – Moderate corrosion stress
LABS / PWIS Conformity	VDMA 24364-B1/B2-L
RoHS Compliant	Yes

Common Applications

• Textile Machinery — Warp beam positioning, dobby frame actuation, and cloth roll clamping on powerlooms and rapier looms in Coimbatore's weaving units.
• CNC Machine Tools — Workpiece clamping, tailstock actuation, and tool changer arm movement on turning and machining centres.
• Plastic Injection Moulding — Ejector pin actuation, core pull cylinders, and mould gate control on injection moulding machines.
• Packaging Machinery — Product pushing, flap folding, carton erecting, and tray insertion on FMCG and pharma packaging lines.
• Automotive Assembly Jigs — Door panel pressing, trim clip insertion, and sub-assembly clamping fixtures on automotive OEM and Tier-1 lines.
• General Industrial Automation — Transfer units, slide actuators, and pick-and-place stages wherever a reliable ISO-standard cylinder footprint is required.

Why Buy from Murali Pneumatics?

• Authorized Festo Channel Partner since 1991 — Over three decades of application experience in Coimbatore's textile, engineering, and manufacturing sectors.
• 100% Genuine Festo Products — Every DNC cylinder supplied carries full Festo warranty and traceability. No grey-market or counterfeit risk.
• Ready Stock of Popular Strokes — Common bore-stroke combinations are maintained at our Mill Road store for same-day or next-day dispatch.
• Expert Technical Support — Unsure of the right stroke length, mounting bracket, or sensor type? Call our team directly on +91 98422 47546 before ordering.

Compatible Accessories

• Mounting Brackets — Foot brackets (LBN), flange mounts (FNS/FNC), pivot mounts (SGS/SGA) — all ISO 15552-compatible, available from stock.
• Rod End Accessories — Clevis (GA), rod eye (GS), rod coupler (KSG) for M10×1.25 thread connection to your driven load.
• Proximity / Reed Sensors — SME, SMT, SMES series position sensors fit into the T-slot on the DNC profile barrel for end-of-stroke detection.
• Flow Control Valves — GR or GRLA series one-way flow controls on G1/8 ports for smooth speed regulation in both directions.
• Push-In Fittings — QS-G1/8-8 or QS-G1/8-6 for quick, leak-free pneumatic line connections to the cylinder ports.
• Tubing — PUN or PLN series polyurethane tubing in 6 mm or 8 mm OD for the G1/8 port connections.

All accessories available from stock. Ask us to bundle your complete assembly.
