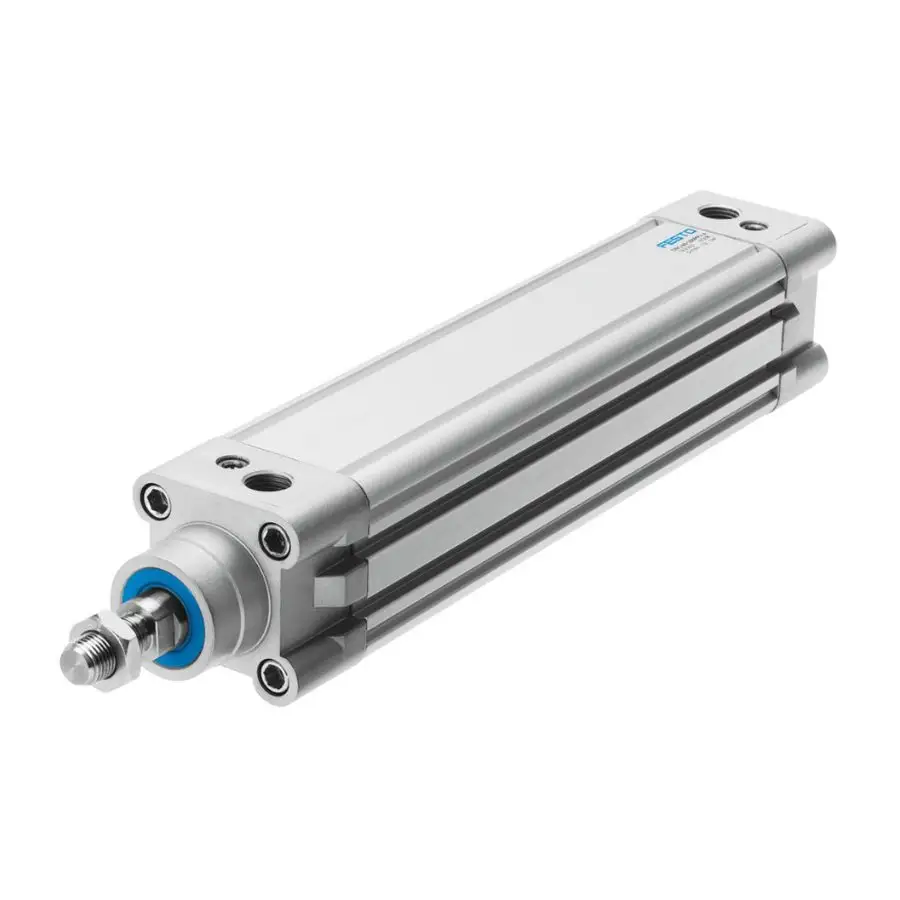

Festo DNC-32 – ISO 15552 Cylinder | 32mm Bore | Murali Pneumatics Coimbatore
The Festo DNC-32 (Part No. 163302) is a standard ISO 15552 double-acting pneumatic cylinder designed for reliable linear motion in industrial automation systems. With a 32 mm bore and flexible stroke options from 2 mm to 2000 mm, it offers consistent performance across a wide range of applications.
It features adjustable pneumatic cushioning at both ends for smooth operation and reduced impact, along with compatibility for proximity sensors.
Ideal for machine builders, textile units, and automation integrators.
Available with Murali Pneumatics, your authorized Festo dealer in Coimbatore.
Product Description
Overview
The Festo DNC-32 is a robust ISO 15552 standard double-acting cylinder designed for precision linear motion in industrial automation. Built with a profile barrel construction and optimized sealing system, the DNC series is known for its long service life, smooth operation, and adaptability across multiple industries. This cylinder is particularly suited for applications requiring consistent force output, adjustable cushioning, and flexible mounting configurations. Its compatibility with proximity sensors and wide range of variants make it a versatile choice for OEMs and maintenance teams alike.Key Features
- 32 mm Bore Size — balanced force output suitable for medium-duty industrial applications
- Wide Stroke Range (2–2000 mm) — adaptable to both compact and long-stroke requirements
- Double-Acting Operation — controlled motion in both extension and retraction
- Adjustable Pneumatic Cushioning — reduces end-position impact and extends cylinder life
- ISO 15552 Standard — easy replacement and global compatibility
- Profile Barrel Design — improved rigidity and mounting flexibility
- Proximity Sensor Ready — enables position feedback for automation systems
- High Corrosion Resistance Options — suitable for demanding environments
- Wide Temperature Capability — operates in extreme ambient conditions
- Multiple Variants Available — including anti-twist, extended rod, and heat-resistant seals
Technical Specifications
| Parameter | Value |
|---|---|
| Festo Part Number | 163302 |
| Cylinder Type | ISO 15552 Standard Cylinder |
| Bore Size | 32 mm |
| Stroke Length | 2 mm to 2000 mm |
| Operating Principle | Double-acting |
| Cushioning | Elastic cushioning rings/pads + adjustable pneumatic cushioning |
| Operating Pressure | 0.2 to 12 bar (0.02 to 1.2 MPa) |
| Mounting Position | Any |
| Mounting Type | Internal thread / with accessories |
| Pneumatic Connection | G1/8 |
| Operating Medium | Compressed air (ISO 8573-1:2010 [7:4:4]) |
| Ambient Temperature | -40°C to 120°C |
| Media Temperature Range | -40°C to 80°C |
| Theoretical Force (6 bar, advancing) | 415 N to 483 N |
| Theoretical Force (6 bar, retracting) | 415 N |
| Impact Energy | 0.1 J |
| Corrosion Resistance Class | CRC 2 / CRC 3 |
| Body Material | Wrought aluminum alloy, anodized |
| Cover Material | Die-cast aluminum, coated |
| Sealing Principle | Elastic seals |
| Position Sensing | For proximity sensor |
| Explosion Protection | ATEX Zones 1, 2, 21, 22 |
| Certifications | CE, UKCA, ATEX |
| LABS Conformity | VDMA24364-B1/B2-L |
| RoHS Compliance | Yes |
Common Applications
- Textile machinery — loom actuators, spinning automation systems
- CNC and machine tools — clamping, positioning, and feed systems
- Packaging lines — carton handling, sealing, and indexing
- Automotive assembly — component movement and fixture actuation
- Plastic injection moulding — ejector and slide mechanisms
- General automation — pick-and-place and linear motion tasks
Why Buy from Murali Pneumatics?
- Authorized Festo Channel Partner in Coimbatore since 1991
- 100% genuine Festo products with warranty support
- Ready stock of standard cylinders and accessories
- Expert technical support — call +91 98422 47546
Compatible Accessories
- Mounting brackets (foot mounts, flange mounts)
- Proximity sensors (SME/SMT series)
- Flow control valves for speed regulation
- Pneumatic fittings (QS series) and tubing
- Shock absorbers (if required for heavy loads)
- Guide units and anti-rotation accessories
