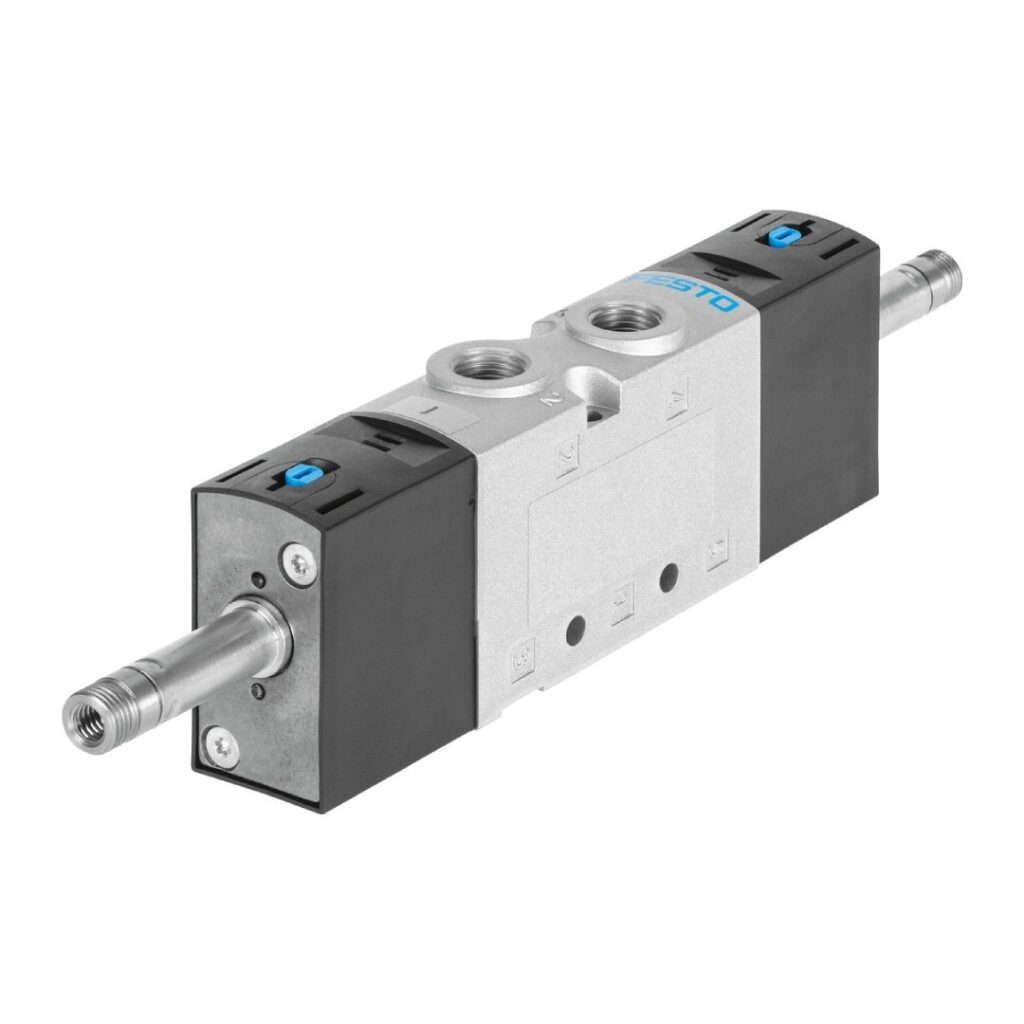

Festo Brand Air solenoid valve VUVS-L20-P53E-MD-N18-F7G38-F8-1B2
Efficient and Reliable Pneumatic Control
The Festo VUVS-L20-P53E-MD-N18-F7G38-F8-1B2 Air Solenoid Valve is a top-tier solution for your pneumatic control needs. Engineered with precision and reliability, this valve is designed to provide seamless performance in various industrial applications. Whether you're looking to enhance automation in manufacturing processes or streamline your pneumatic systems, this valve delivers consistent results.
Key Features
- Valve Function: 5/3, Exhausted The 5/3 valve function allows for versatile control with three positions: one for air flow, one for exhausting, and one for closed positions. This functionality ensures that your systems can adapt to different operational requirements with ease.
- Standard Nominal Flow Rate: 600 l/min With a standard nominal flow rate of 600 liters per minute, this valve offers optimal air flow, making it suitable for high-demand applications. The efficient flow rate ensures that your pneumatic systems operate smoothly and efficiently.
- Pneumatic Connection: 1/8 NPT The 1/8 NPT pneumatic connection is a standard threading that guarantees compatibility with a wide range of pneumatic components. This universal connection simplifies integration into existing systems, reducing installation time and effort.
- Type of Actuation: Electrical The electrical actuation provides precise control over the valve's operation. It allows for quick response times and accurate positioning, essential for maintaining high levels of performance in automated systems.
Product Description
Technical Data
- Valve function5/3, exhausted
- Actuation typeElectrical
- Valve size21 mm
- Standard nominal flow rate600 l/min
- Pneumatic working port1/8 NPT
- Operating pressure0.25 MPa ... 1 MPa
- Operating pressure2.5 bar ... 10 bar
- Structural designPiston gate valve
- Reset methodMechanical spring
- Certificationc UL us - Recognized (OL)
- Nominal width4.5 mm
- Exhaust air functionWith flow control option
- Sealing principleSoft
- Mounting positionAny
- Manual overrideDetenting Non-detenting
- Type of controlPilot-controlled
- Pilot air supply portInternal
- Flow directionNon-reversible
- Symbol00991036
- LapOverlap
- b-value0.35
- C value2.5 l/sbar
- Switching time off44 ms
- On switching time13 ms
- Changeover time24 ms
- Max. positive test pulse with 0 signal1900 µs
- Max. negative test pulse on 1 signal2700 µs
- Operating mediumCompressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot mediaOperation with oil lubrication possible (required for further use)
- Vibration resistanceTransport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
- Shock resistanceShock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Corrosion resistance class (CRC)2 - Moderate corrosion stress
- LABS (PWIS) conformityVDMA24364-B1/B2-L
- Temperature of medium-10 °C ... 60 °C
- Pilot mediumCompressed air as per ISO 8573-1:2010 [7:4:4]
- Ambient temperature-10 °C ... 60 °C
- Product weight229 g
- Type of mountingOptionally: On terminal strip With through-hole
- Venting hole connectionNot ducted
- Pilot exhaust air port 8210-32 UNF-2B
- Pilot exhaust air port 8410-32 UNF-2B
- Pneumatic connection 11/8 NPT
- Pneumatic connection 21/8 NPT
- Pneumatic connection 31/8 NPT
- Pneumatic connection 41/8 NPT
- Pneumatic connection 51/8 NPT
- Note on materialsRoHS-compliant
- Seals materialHNBR NBR
- Housing materialDie-cast aluminum Painted
- Piston slide materialHigh-alloy stainless steel
- Material of screwsSteel, galvanized
