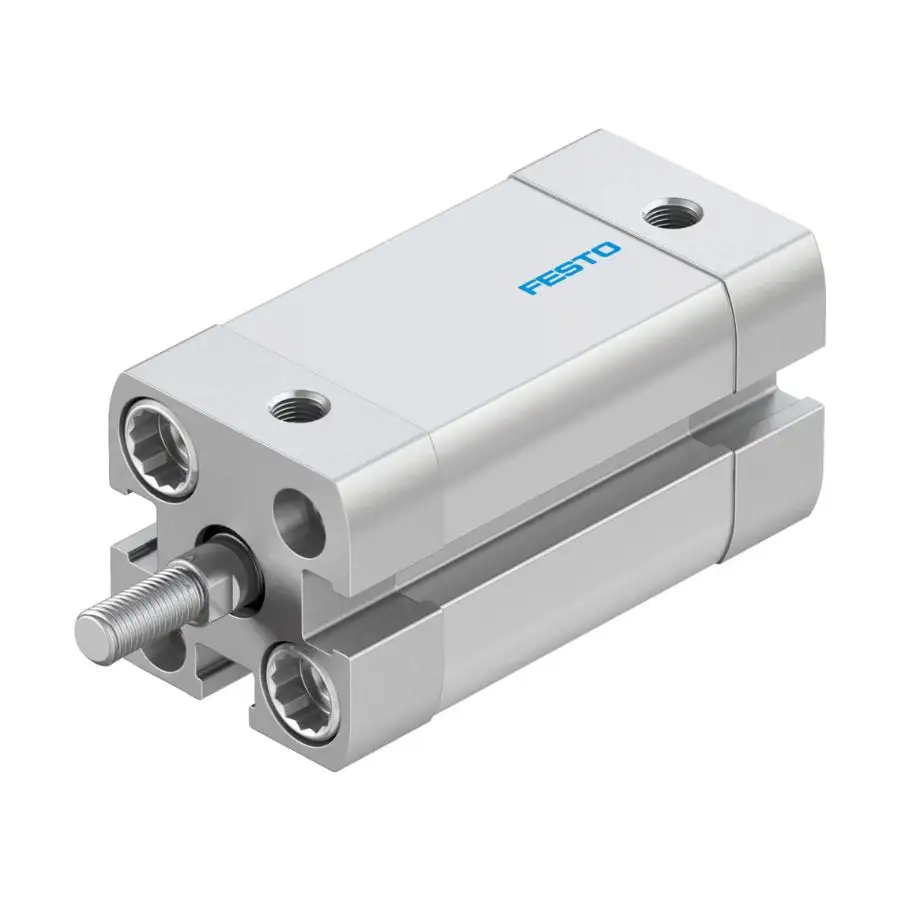

Festo ADN-12 Compact Pneumatic Cylinder for Space-Saving Automation

The Festo ADN-12 is a compact pneumatic cylinder from Festo’s ADN series, designed for applications where a short overall length and dependable double-acting movement are required. Based on ISO 21287, this compact cylinder is commonly selected for machine builders who need a reliable actuator in restricted installation spaces. With a 12 mm piston diameter, M5 pneumatic connection, elastic cushioning at both ends, and position sensing via proximity switch, the ADN-12 is suitable for precise industrial automation tasks across packaging, textile-related machinery, battery production, cleanroom systems, and general pneumatic equipment. Murali Pneumatics supplies genuine Festo ADN cylinders in Coimbatore with technical support for correct stroke, mounting, and accessory selection.

Key Features

• 12 mm piston diameter — suitable for compact automation tasks requiring controlled linear motion in limited machine space.
• Stroke range from 1 mm to 300 mm — allows the ADN-12 series to be configured for short-stroke and application-specific movement requirements.
• Double-acting mode of operation — provides powered movement in both advance and return directions.
• ISO 21287-based compact design — helps machine builders maintain standardised compact cylinder layouts.
• Elastic cushioning rings or plates at both ends — reduces impact at end positions for smoother operation.
• Position detection via proximity switch — supports automation feedback when compatible sensors are selected separately.
• M5 pneumatic connection — suitable for compact pneumatic tubing and fitting arrangements.
• Optional mounting position — gives flexibility during machine installation and retrofit work.
• ATEX and UKEX-related certification options — suitable for specified explosive atmosphere zones when the correct variant is selected.
• RoHS-compliant material note — supports compliance requirements in modern industrial procurement.

Technical Specifications

Parameter	Value
Festo Part Number	536203
Product Category	Compact cylinder
Series	ADN
Model	ADN-12
Cylinder Type	Compact pneumatic cylinder
Stroke	1 mm ... 300 mm
Piston Diameter	12 mm
Based on Standard	ISO 21287
Cushioning	Elastic cushioning rings/plates at both ends
Mounting Position	Optional
Mode of Operation	Double-acting
Design	Piston, piston rod, profile barrel
Position Detection	Via proximity switch
Variants	Advancing stroke adjustment, weld spatter protection, piston rod with female thread, piston rod with external hexagon, module for reaching a specific end position in case of pressure failure, transverse load increased, reinforced piston rod, uniform slow movement, low friction, through hollow piston rod
Operating Pressure	0.1 MPa ... 1 MPa / 1 bar ... 10 bar / 14.5 psi ... 145 psi
CE Mark	To EU Explosion Protection Directive ATEX
UKCA Marking	To UK EX instructions
Explosion Protection Certification Outside the EU	EPL Db (GB), EPL Gb (GB)
Explosion Protection	Zone 1 ATEX, Zone 1 UKEX, Zone 2 ATEX, Zone 21 ATEX, Zone 21 UKEX, Zone 22 ATEX
ATEX Category Gas	II 2G
ATEX Category Dust	II 2D
Explosion Ignition Protection Type for Gas	Ex h IIC T4 Gb
Explosion Ignition Protection Type for Dust	Ex h IIIC T120°C Db
Explosion Ambient Temperature	-20°C <= Ta <= +60°C
Operating Medium	Compressed air to ISO 8573-1:2010 [7:4:4]
Note on Operating and Pilot Medium	Lubricated operation possible; once lubricated, lubricated operation will always be required
Corrosion Resistance Class CRC	0 - No corrosion stress, 2 - Moderate corrosion stress, 3 - High corrosion stress
LABS / PWIS Conformity	VDMA24364-B1/B2-L, VDMA24364 zone III
Suitability for Li-ion Battery Production	Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Ambient Temperature	-20 °C ... 120 °C
Theoretical Force at 0.6 MPa / 6 bar / 87 psi, Return Stroke	51 N
Theoretical Force at 0.6 MPa / 6 bar / 87 psi, Advance Stroke	51 N ... 68 N
Additional Weight per Piston Rod Extension of 10 mm	2 g
Additional Weight per Piston Rod Thread Extension of 10 mm	2 g
Type of Mounting	With through-hole, via female thread, with accessories
Pneumatic Connection	M5
Note on Materials	RoHS-compliant
Material Collar Screws	Steel
Material Cover	Anodised wrought aluminium alloy
Material Piston Rod	High-alloy steel
Material Cylinder Barrel	Smooth-anodised wrought aluminium alloy

Common Applications

• Packaging machine pushers, stoppers, flap movement, and compact indexing stations.
• Food processing automation where compact pneumatic movement and clean installation are required.
• Battery cell production equipment requiring suitable variants with reduced Cu/Zn/Ni values.
• Cleanroom-related automation where the correct ADN variant is selected for the application.
• Textile machinery auxiliary movements such as small clamping, guiding, and positioning tasks.
• CNC machine tool doors, small ejectors, component positioning, and fixture automation.

Why Buy from Murali Pneumatics?

• Authorized Festo Channel Partner in Coimbatore since 1991.
• 100% genuine Festo products with full Festo warranty support.
• Ready stock of popular Festo pneumatic cylinders, valves, fittings, tubing, and accessories at our Coimbatore store.
• Expert technical support for stroke selection, mounting accessories, proximity switches, fittings, and pneumatic circuit matching — call +91 98422 47546.

Compatible Accessories

• Festo proximity switches for position sensing, selected according to cylinder slot and application requirement.
• Mounting accessories such as brackets, foot mounts, flange mounts, and clevis-related hardware where applicable.
• Flow control valves for speed adjustment in advance and return strokes.
• M5 pneumatic fittings suitable for the selected tube outside diameter.
• Festo pneumatic tubing for compressed air connection.
• Silencers, valves, FRL units, and pneumatic accessories for complete cylinder circuit assembly.
• All accessories available from stock. Ask us to bundle your complete assembly.
